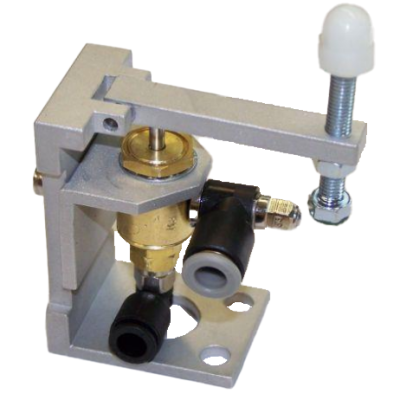

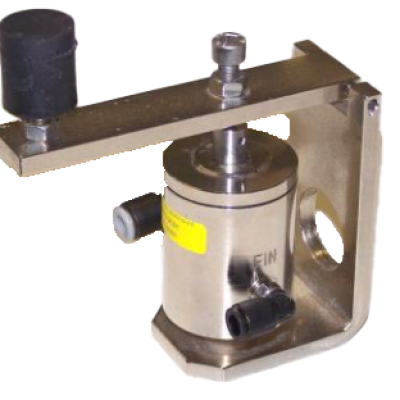

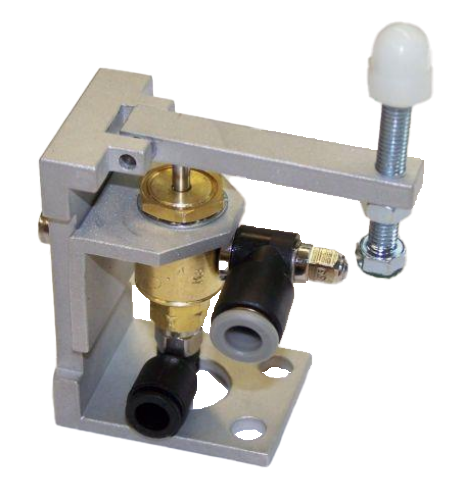

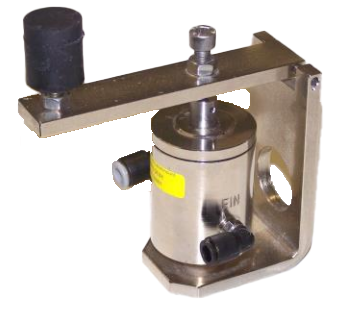

MPN Mechanical Pneumatic Levelling Regulation for Standard Pneumatic Springs

Choose your Part

Please select desired options to reveal part number, price and availability

Product Description

MPN's are pneumatic suspensions systems with level control for use with a control unit. They are used in optical and mechanical measuring equipment, measuring tables, mounting plates, test benches, scales etc.

These are to be used in conjunction with maintenance and control unit SU-A for varying load distribution

Specification

• Mechanical-pneumatic proportional valve
• Metal parts made of light alloy
• Swivel connectors for hose with 6mm outer diameter
• Inflow rate controlled with throttle valve at entry
• Base plate with screw mount (8mm)

Mode Of Operation

Target level is set with adjusting the screw on the lever. According to the lever position, any load change leads to supply or discharge of compressed air.
