GN53.3
Magnet, Disk Shape, With Handle, Plastic Housing
Please select desired options to reveal part number, price and availability
Options

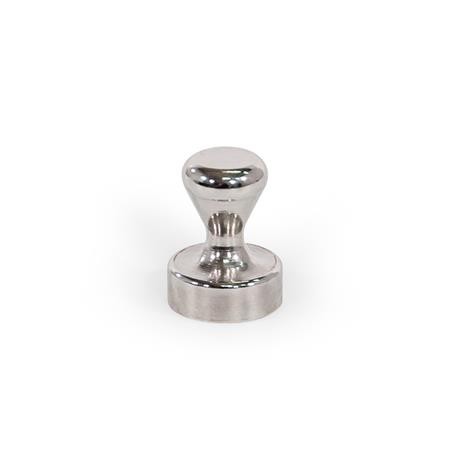

Type A - Without eyelet
Type B - With eyelet
Product Description
GN53.4 Magnet, Disk Shape, With Handle
Magnets GN 53.3, with ergonomic and stylish nickel-plated steel handle. These magnets work as a system for holding documents, templates and drawings etc. that are used in technical environments.
The neodymium magnet keeps the required contact diameter small while also supplying a high retaining force.
Type B also features a rubber pad to protect sensitive surfaces from damage, and prevent and scratching, and also ensure low noise on contact.
Specification
Magnet Material: NdFeB ND Neodymium, Iron, Boron, temperature resistant up to 80°C.
Housing - Steel, nickle plated
Rubber Pad (Type B) - Elastomer (TPE) Black, ≈ 80 Shore A
Accessory
Holding disks GN70
Adhesive disks GN70.1
