Please select desired options to reveal part number, price and availability
Options

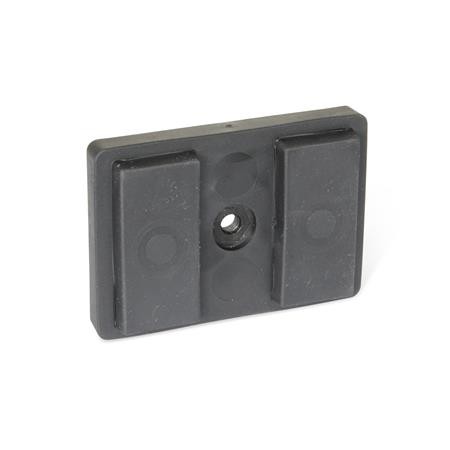

Type A - with 1 threaded insert

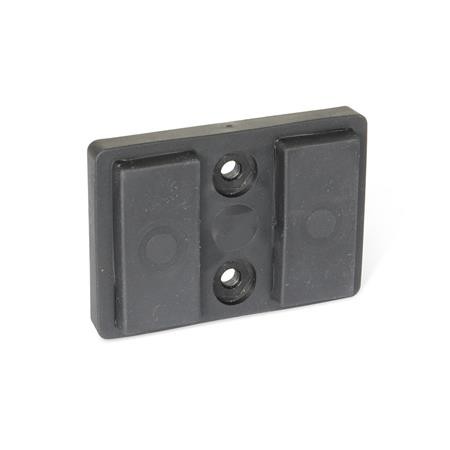

Type B - with 2 threaded inserts
Type D - with 2 bores
Product Description
GN57.2 Retaining Magnet, Rectangular Shaped with Rubber Jacket
The retaining magnets GN 57.2 with rubber jacket form a system together with the steel part that is especially strong, shielding the magnet, increasing the depth of its effect and optimally concentrating the magnetic flux on the rubberised magnetic surfaces. This makes these magnets particularly well suited for use on surfaces that may have thick coats of paint or feature rounded or uneven shapes.
The rubber protects sensitive surfaces from being damaged by the magnet and also delivers a high friction coefficient, resulting in high lateral displacement forces.
Specification
Steel part - zinc plated
Materials of the magnet - Hard ferrite HF, temperature resistant up to 200 °C
NdFeB ND, Neodymium, iron, boron, temperature resistant up to 80 °C
Rubber jacket - Elastomer (TPE), ≈ 50 Shore A (Magnetic surface), ≈ 90 Shore A (Mounting surface), black SW
CAD Viewer
Technical Data
