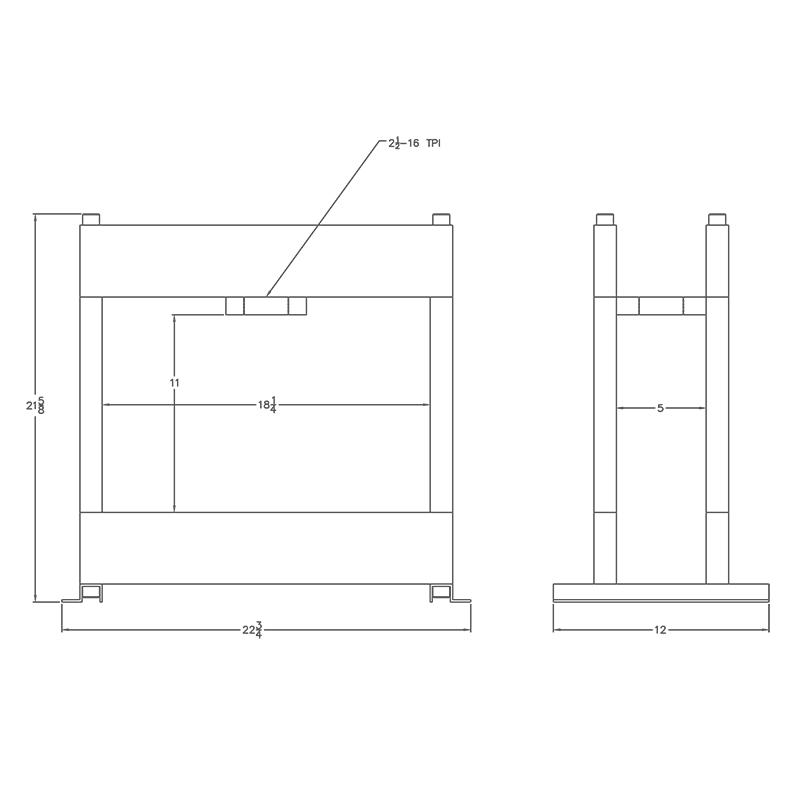

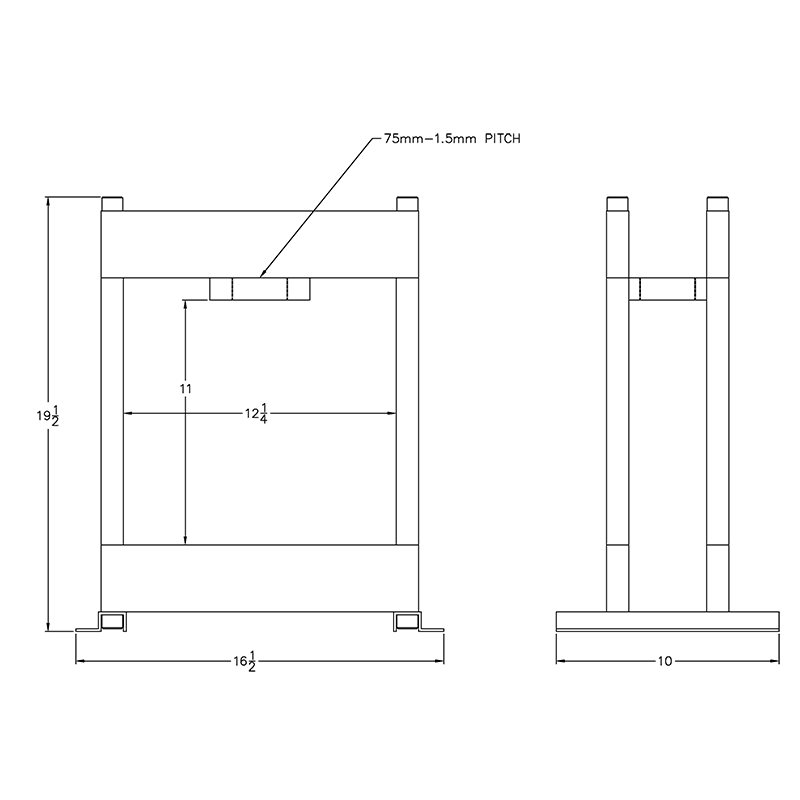

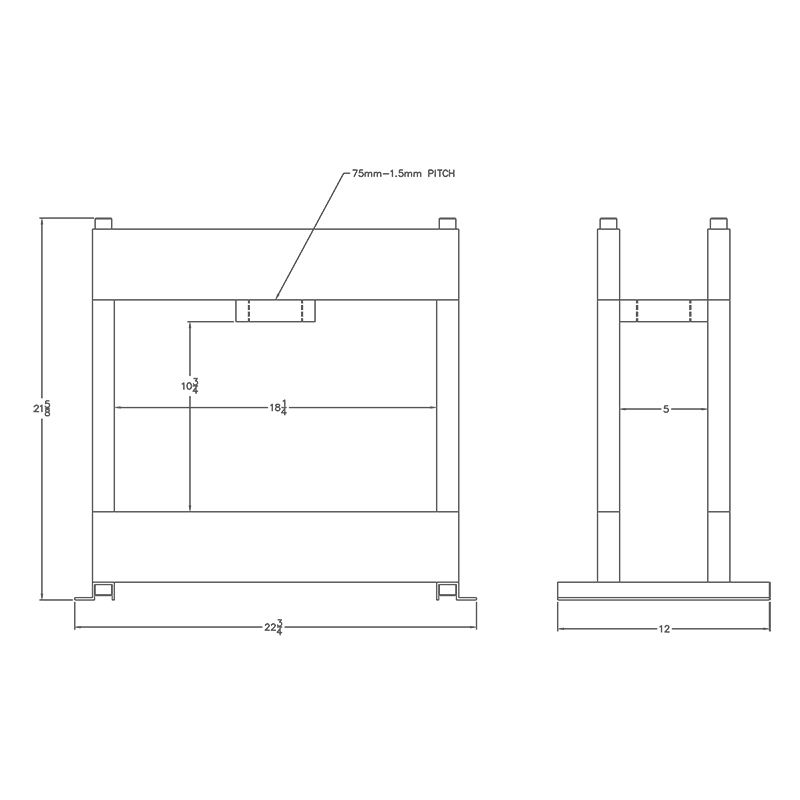

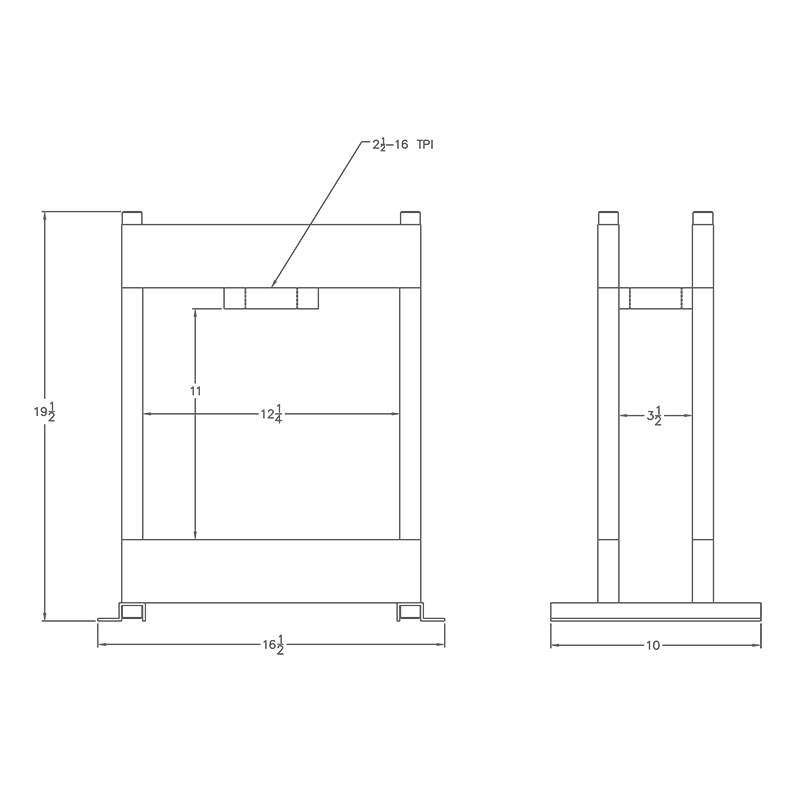

H-Frame For Multicyl Press Cylinder
These H frames are designed to support and protect both single and double acting multicyl air over oil press cylinders and allow tooling to be positioned. They are sold separately for maximum flexibility. These presses are ideal for workshops and are used for a range of tasks, such as hole punching, notching, shearing, and tube piercing.
Please see "Technical Data" series pdf for type specifications before selecting your frame for order.
Please contact our sales team for more information or call us on 01732 763377
| Part Code |
|---|
| DX-MCP1215 |
| MC-MCP1215 |
| XL-MCP1215 |
| DL-MCP1825 |
| DX-MCP1825 |
| MC-MCP1825 |
| XL-MCP1825 |
| MC-MP12 |
| MC-MP18 |
| DX-MPX12 |
| XL-MPX12 |
| DX-MPX18 |
| XL-MPX18 |
CAD Viewer
Technical Data
