Please select desired options to reveal part number, price and availability
Product Description

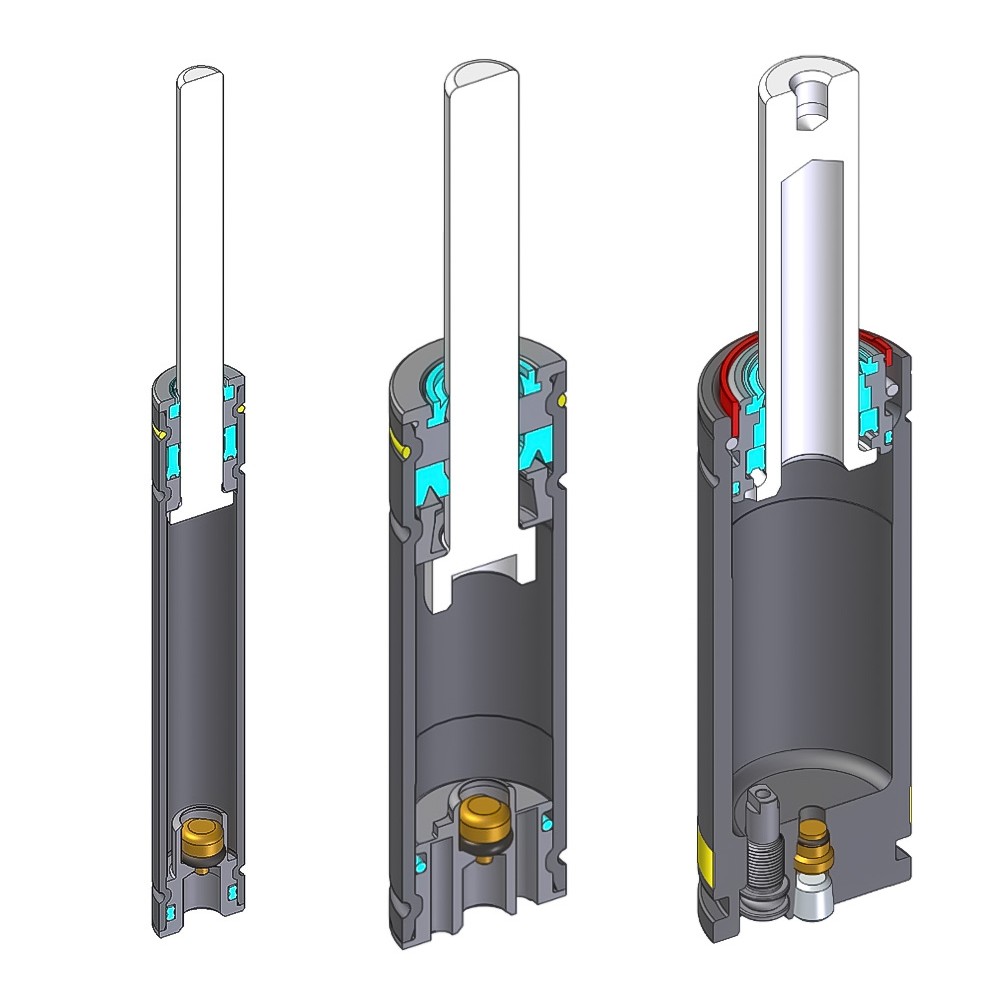

M300 Mini Cylinder
Maximum safety with OPAS as standard (overpressure active safety). Safety is an important aspect and our gas cylinders have unique, patented safety features. For further details, see Gas Safety Information.

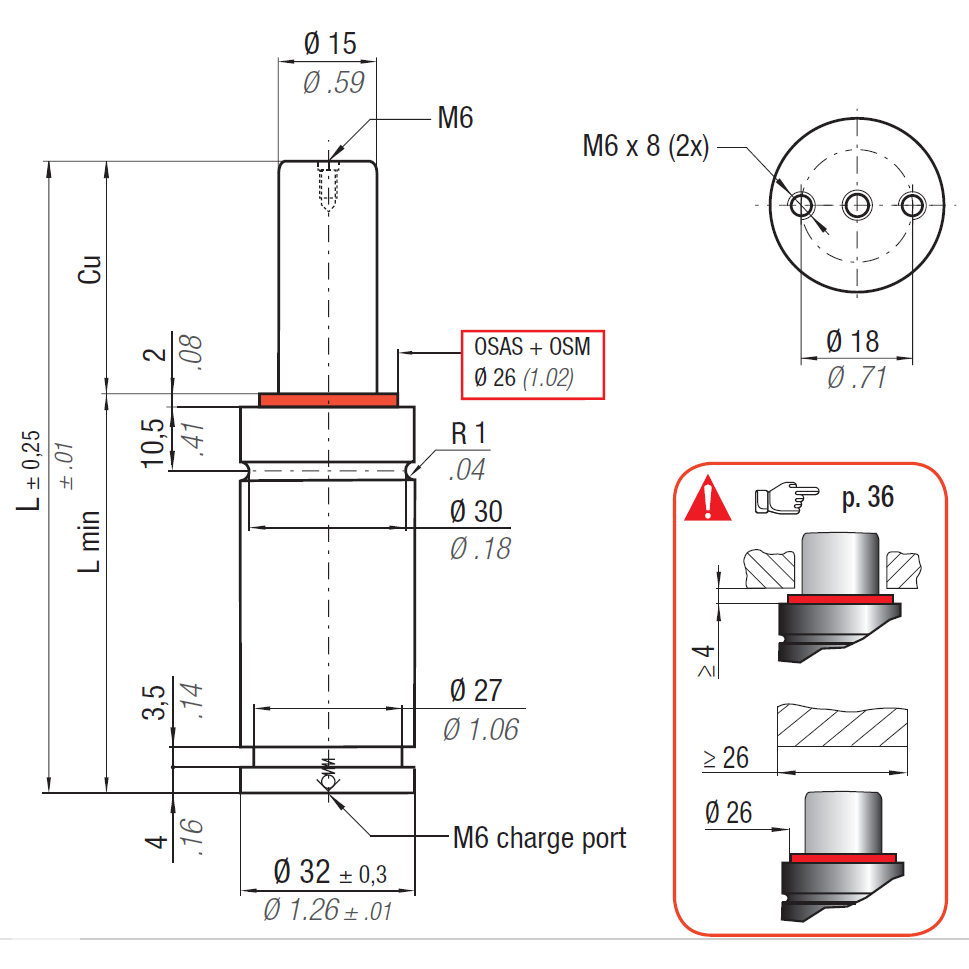

Dimensions according to ISO 11901 and VDI3003 standards.
Wide range of miniaturised accessories available, including micro-hose + micro connections. Range of predefined forces identifiable with coloured rings. The forces are always adjustable with charging pressures of 10 to 180 bar max.
NOTE: Available in contained & linkable (N) format. TBM= M24x1,5 Body thread TEM= M24x1,5 Body thread TBI= 1/8 THD Body thread.
F1i = Isothermal end force at 100% Cu
F1p = Polytrophic end force at 100% Cu (See Techincal Data - Catalogue Specification for more information)
CAD Viewer
Technical Data
