GN543.2 Oil Sight Glasses, Plastic

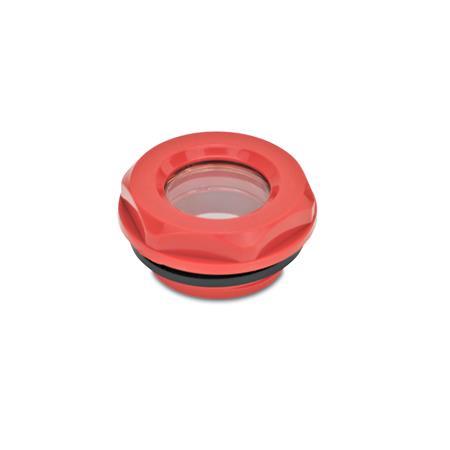

CloseNextPreviousGN543.2 Oil Level Sight Glass
Type B Without Reflector, Colour RT Red

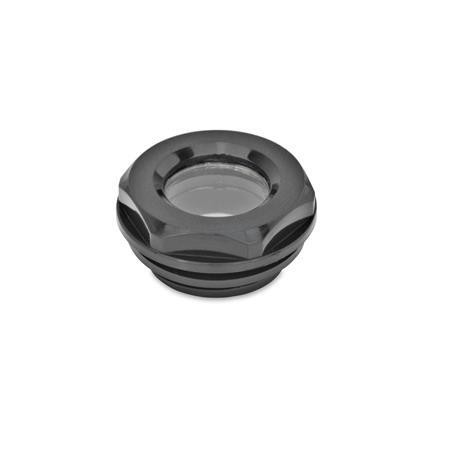

CloseNextPreviousGN543.2 Oil Level Sight Glass
Type B Without Reflector, Colour SW Black
Choose your Part
Please select desired options to reveal part number, price and availability
Options

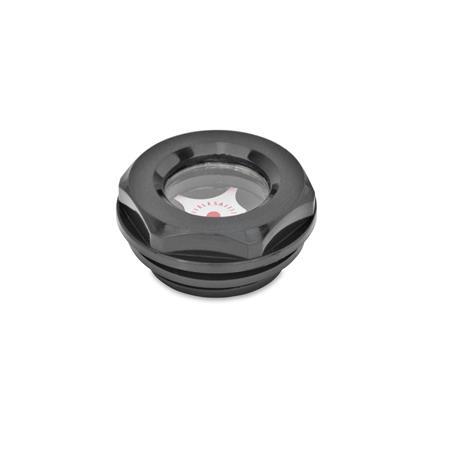

Type A - with reflector
Type B - without reflector
Product Description
GN543.2 Oil Sight Glasses, Plastic
The window of oil sight glasses GN 543.2 is embedded in the body during the injection process and it is therefore absolutely leaktight.
The sealing ring is embedded in a radial undercut and it cannot be extruded during the tightening operation.
The red version indicates a special "control point".
Assembly Instruction
For mounting on walls of less than 4 mm thickness please use a mounting nuts GN7430.
Specification
- Body - Plastic, Temperature resistant up to 100 °C, Pressure resistant up to 3 bar,
- Sight glass - Plastic, Crystal clear Polyamide (PA 6-T)
- Seal - Rubber NBR (Perbunan®)
- Reflector - Aluminum, Natural color, anodized
Accessory
Mounting Nuts GN7430
CAD Viewer
Technical Data
