Please select desired options to reveal part number, price and availability
Options

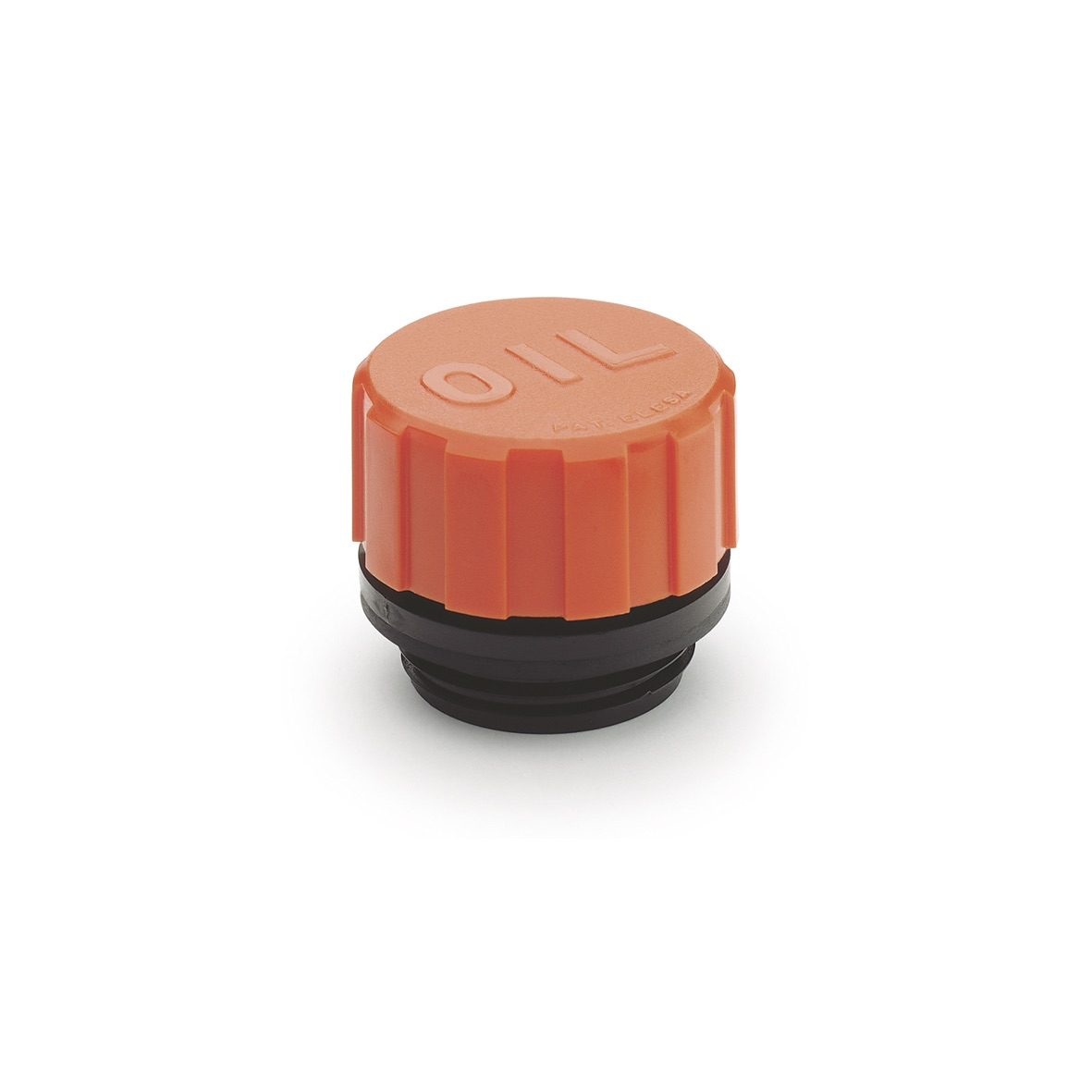

Type A - without Dipstick

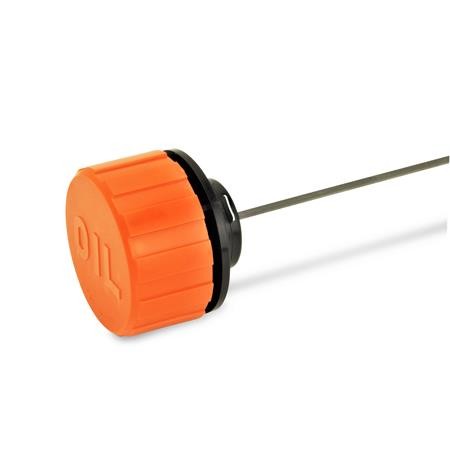

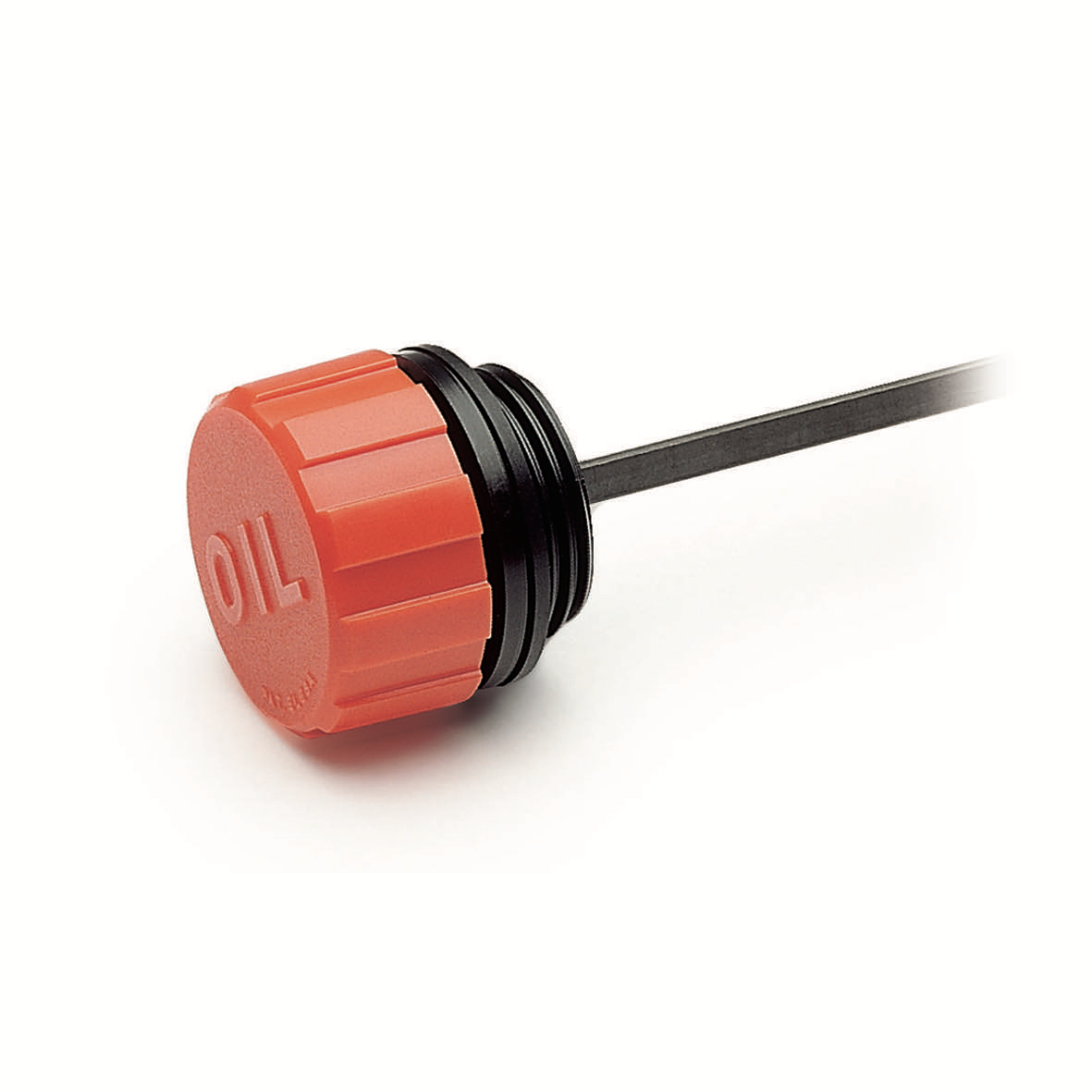

Type B - with Dipstick (Only Available for Identification No 1 and 2)
Identification No.
1 - with Splash Guards, without Filter (not available from stock, requires a minimum order quantity)
2 - with Splash Guards, with PU Filter
3 - without Splash Guards, without Filter (not available from stock, requires a minimum order quantity)
4 - without Splash Guards, with PU Filter
Product Description
GN663 Breather Caps, Plastic
Function and operational criteria of breather caps GN 663, see description of function.
Breather caps can be connected by either a threaded or a bayonet (BA) fitting and filler strainer GN 664 or GN 664.1.
The bayonet type can be secured by means of the attached chain.
MAX-MIN markings can easily be added to the flats of a dipstick (see GN 109).
Specification
Plastic - Temperature resistant up to 100 °C
Upper part (cap) - orange, RAL 2004 OR
Lower part (threaded part / bayonet) - Black, matte finish
Seal - Rubber NBR (Perbunan®)
Air filter PU-foam (Polyurethane) - Filtration 40 µm, Temperature resistant up to 100° C
Dipstick - Steel, phosphated
On Request
Fluid level markings / special lengths see GN109
Cap without imprint "OIL" or other imprint
CAD Viewer
Technical Data
