GN7405 Strainer Fittings, Stainless Steel

images/300/GN7405-Stainless-Steel-Strainer-fittings-drawing_H.png

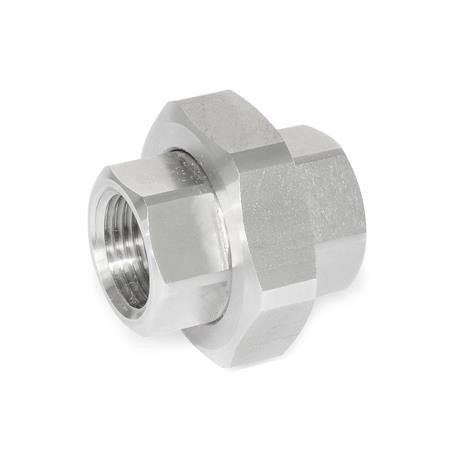

Type A - Fitting with female thread on both ends

Type B - Fitting with female / male thread

Select Values to Buy:

Tech Spec:



GN7405 Strainer Fittings, Stainless Steel

These stainless steel strainer fittings, GN7407, are suited for assembly into piping systems as upstream or downstream protection devices. Depending on the mesh size, particles carried by liquid or gaseous media can be prevented from passing through. Units or housing interiors are thereby protected from foreign objects causing blockages or damage which can impair function or durability. Being made from stainless steel, they are corrosion resistant and ideal for use in clean room environments such as found in the food and pharmaceutocal industries or their associated processing and packaging.

The housing is separately bolted through a union nut, making assembly/disassembly easier and allowing the strainer insert to be exchanged as and when necessary.

Replacement stainless steel strainer inserts are also available - GN7403.1

Specification

Housing - Stainless Steel, NI, AISI 304
Strainer - Stainless Steel mesh, AISI 304
Strainer bezel - Plastic (Polyamide PA), glass fibre reinforced, temperature resistant up to 100°C
O-ring - NBR (Perbunan)

Accessory - Replacement stainless steel strainer inserts are also available as GN7403.1

RoHS compliant

Select / Deselect Visible Columns
Close
HideMaterialShow
HidedShow
HideTypeShow
HideMesh sizeShow
HideeShow
Hidel1Show
Hidel2Show
Hidel3Show
Hidel4Show
Hidel5Show
Hides1Show
Hides2Show
HideDifferential pressure
Flow volume in l/min.
Water 100µm
Show
Hide500µmShow
HideHydraulic oil
(HPL 46)
100µm
Show
Hide500µmShow
PartCodeMaterialdTypeMesh sizeel1l2l3l4l5s1s2Differential pressure
Flow volume in l/min.
Water 100µm
500µmHydraulic oil
(HPL 46)
100µm
500µmMass

GN7405-NI-G3/8-A-100NIG3/8A1004036.512~~~362221257180.14
GN7405-NI-G3/8-B-100NIG3/8B10040~12211245362221257180.14
GN7405-NI-G3/8-A-500NIG3/8A5004036.512~~~362221257180.14
GN7405-NI-G3/8-B-500NIG3/8B50040~12211245362221257180.14
GN7405-NI-G1/2-A-100NIG1/2A100454013~~~4126486115.538.518.022
GN7405-NI-G1/2-B-100NIG1/2B10045~132314494126486115.538.50.188
GN7405-NI-G1/2-A-500NIG1/2A500454013~~~4126486115.538.50.168
GN7405-NI-G1/2-B-500NIG1/2B50045~132314494126486115.538.50.187
GN7405-NI-G3/4-A-100NIG3/4A100554615~~~5034961043077.50.303
GN7405-NI-G3/4-B-100NIG3/4B10055~152516555034961043077.50.333
GN7405-NI-G3/4-A-500NIG3/4A500554615~~~5034961043077.50.303
GN7405-NI-G3/4-B-500NIG3/4B50055~152516555034961043077.50.333
