GN774.1 Breather Caps, Plastic, With Membrane
Choose your Part
Please select desired options to reveal part number, price and availability
d1 Outside diameter
70
d2 Thread
G11/4
Colour
GN RT
Stock Availability
No Stock for immediate dispatch
Product Description

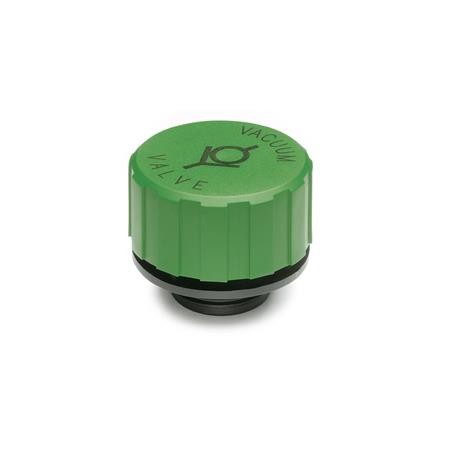

GN774.1 Breather Caps, Plastic, With Membrane
Breather caps GN 774.1 prevent the build up of a pressure drop over liquids in a tank.
They are used when a tank has to be rapidly emptied. The elastic membrane ensures a sufficient supply of air to prevent any vacuum build-up in the tank.
In addition, the back pressure behind the membrane will prevent the leakage and escape of any liquid in the tank to the outside, especially during transport. Even if the tank is turned upside down with the additional back pressure from the liquid, it will be sufficient to keep the outlet firmly shut.
Specification
- Upper part (cap) - Plastic (Polypropylene PP), temperature resistant up to 50° C
- Red, RAL 3000 RT - Membrane and flat seal EPDM (Ethylene propylene diene rubber)
- Green, RAL 6001 GN - Membrane and flat seal FKM (Fluor rubber, Viton®)
- Symbol - black printed
- Lower part (threaded part) - Plastic (Polypropylene PP), temperature resistant up to 50° C, black
CAD Viewer
Technical Data
