Product Description

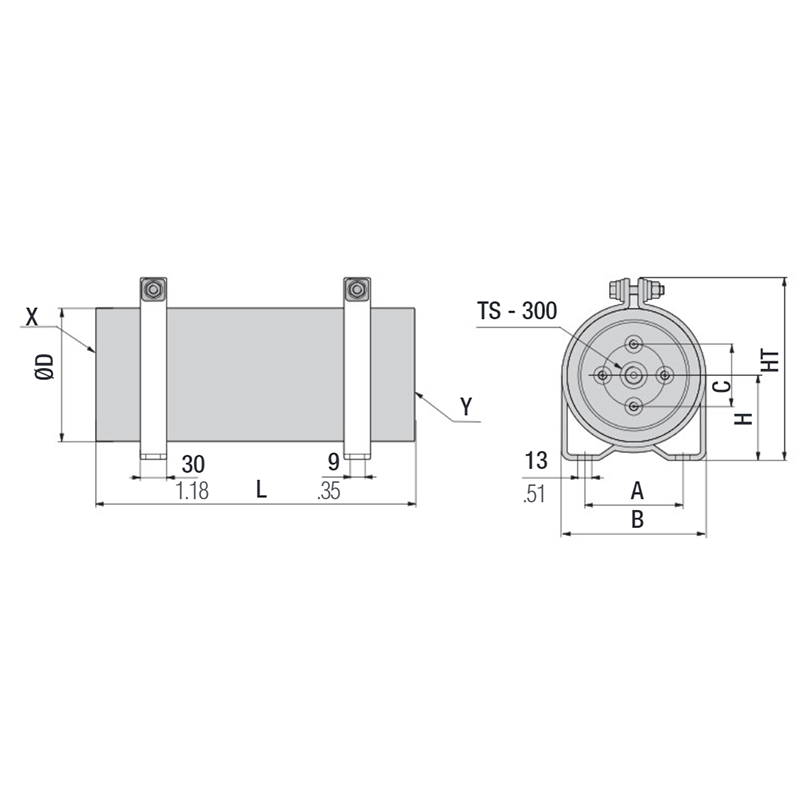

PC Compensation Tank
Compensation Tank PC may be used with gas cylinders operating in non self-contained mode. The principle aim is to limit the pressure within the system to a lower figure than would normally be obtained with standard compression rates. The compensation tank volume may be easily found using the following formula: Vp = n((SxR/(R-1))-V0)
Vp = compensation volume (cm3)
n = no. of gas cylinders required
S = area of rod (piston for sereis KE)(cm2)
x = effective working stroke (cm)
R = ratio between final required pressure and initial pressure of the system (max 1,4)
V0 = initial volume of each cylinder (cm3)
CAD Viewer
Technical Data
