Product Description

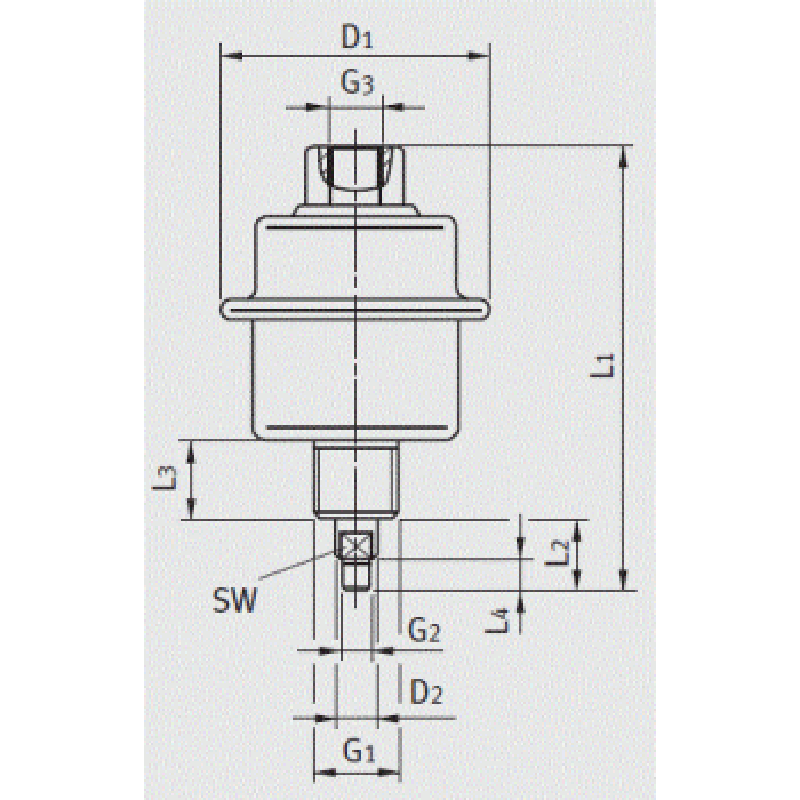

KH Short Stroke Diaphragm Pressure Cylinder

The casing is special Deep drawing sheet steel, galvanised. The Piston rods are Ni steel with Guide bushings that are self-lubricating and Piston rods that do not rotate - riveted with membrane.

Short-stroke device type KH 50

Weight 0.13 kg

Single-acting

Max. pressurisation = 10 bar

Max. stroke = 8 mm

Air consumption per stroke/6 bar = 0.01 0.05 l

Ambient temperature = -20 °C +80 °C

Short-stroke device type KH 100

Weight 0.6 kg

Single-acting

Max. pressurisation = 10 bar

Max. stroke = 20 mm

Air consumption per stroke/6 bar = 0.1 0.35 l

Ambient temperature = -20 °C +80 °C

Short-stroke device type KH 250

Weight 2.4 kg

Single-acting

Max. pressurisation = 10 bar

Max. stroke = 35 mm

Air consumption per stroke/6 bar = 0.2 1.5 l

Ambient temperature = -20 °C +80 °C
