Product Description

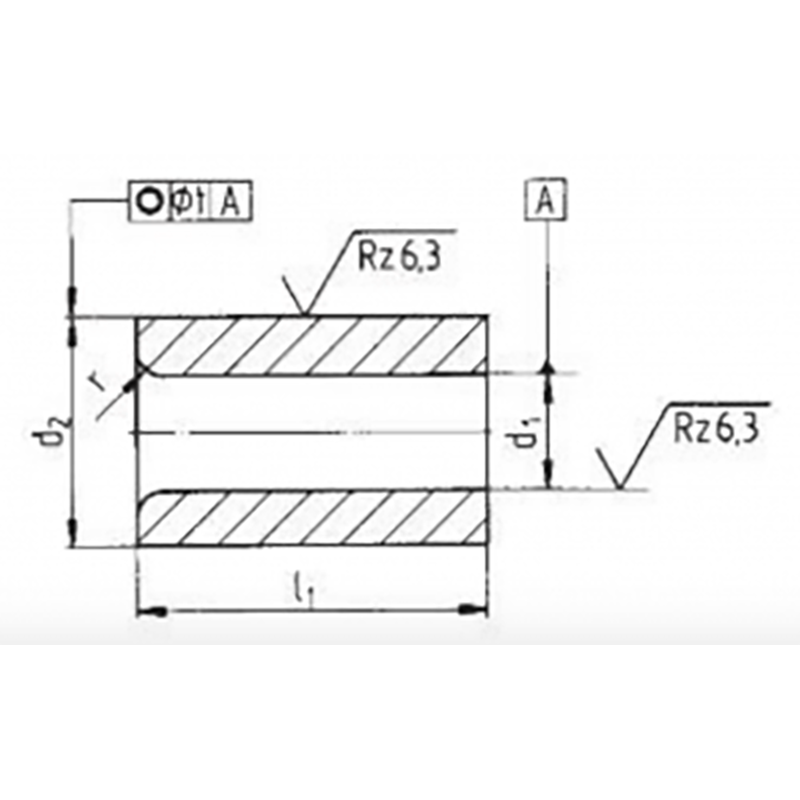

ISO 8978 Punch Guide Bush
These ISO8978 punch guide bushes are available in a range of sizes suitable for DIN 9861 punches with similar tolerance.
Please contact us with your special requests/drawings for quoting. We are happy to convert any punch and die supplier coding.
Specification
Item No: 5312
Material: Case-hardened steel as selected by manufacturer
Hardness: HRC 62±2
CAD Viewer
Technical Data
