MFDC Headless Die Bush, with Taper Relief, Circular
Choose your Part
Please select desired options to reveal part number, price and availability
D Diameter
8 10 13 16 20 22 25 32 38 40
L Length

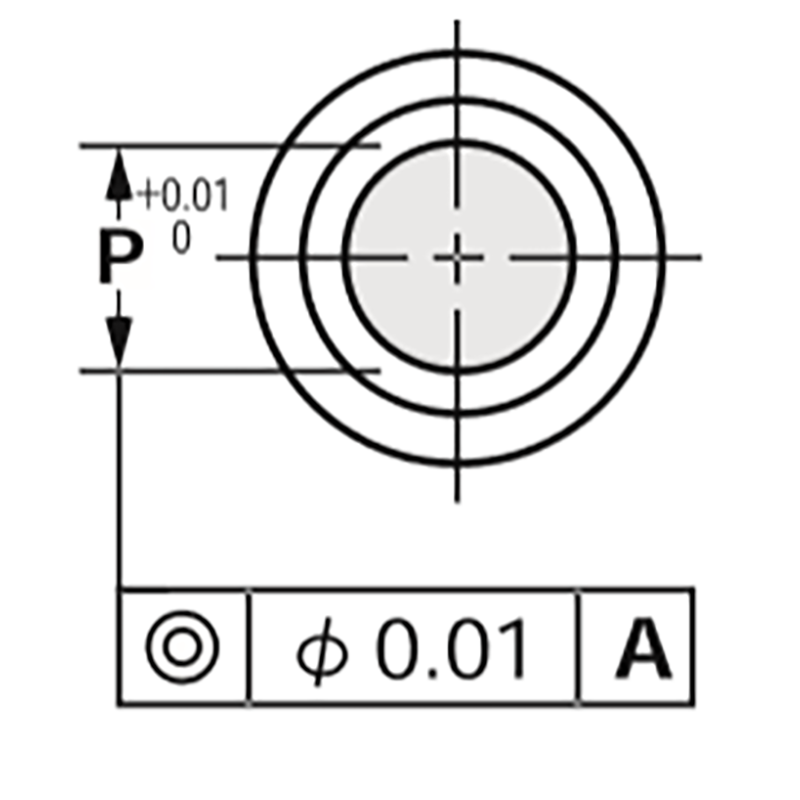

P Dimension
B
Material
Please select enough values above to create a complete part code...
Product Description

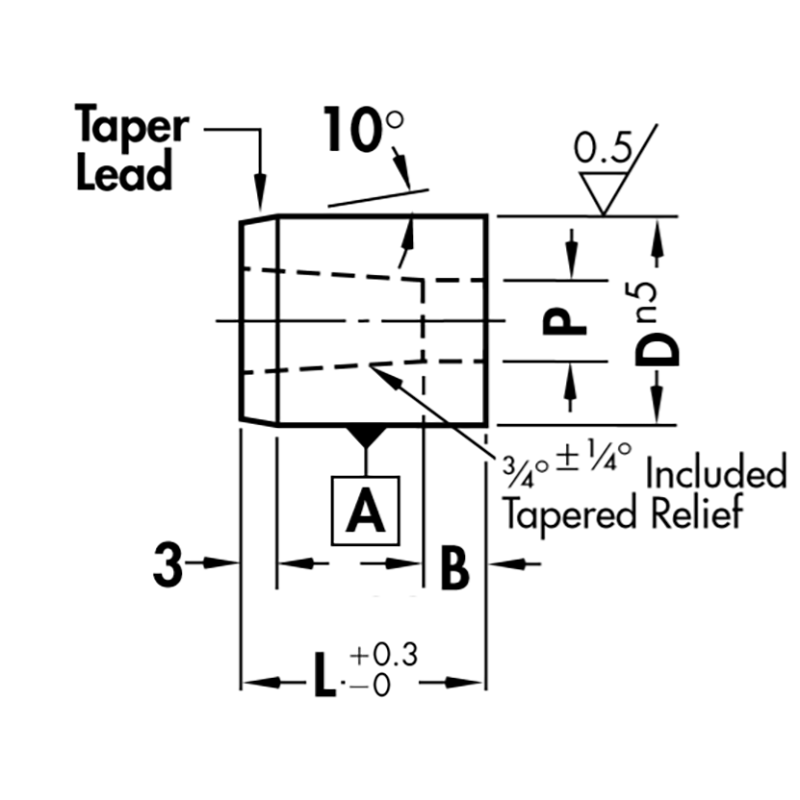

MFDC Headless Die Bush, with Taper Relief, Circular
These circular metric headless die bushes with taper relief, MFDC, are available in a range of sizes and top quality materials.
Please note - slots and flats are available, as shown here. To order, please contact us
Specification
- Material D2 (HWS) - High carbon high chrome steel, Hardness HRC: 60~63
- Material M2 (HSS) - High speed steel, Hardness HRC: 60-63
Please contact us with your special requests/drawings for quoting. We are happy to convert any punch and die supplier coding.
CAD Viewer
Technical Data
