Please contact us with your special requests/drawings for quoting.
We are happy to convert any punch and die supplier coding.
Shapes
R - Rectangle

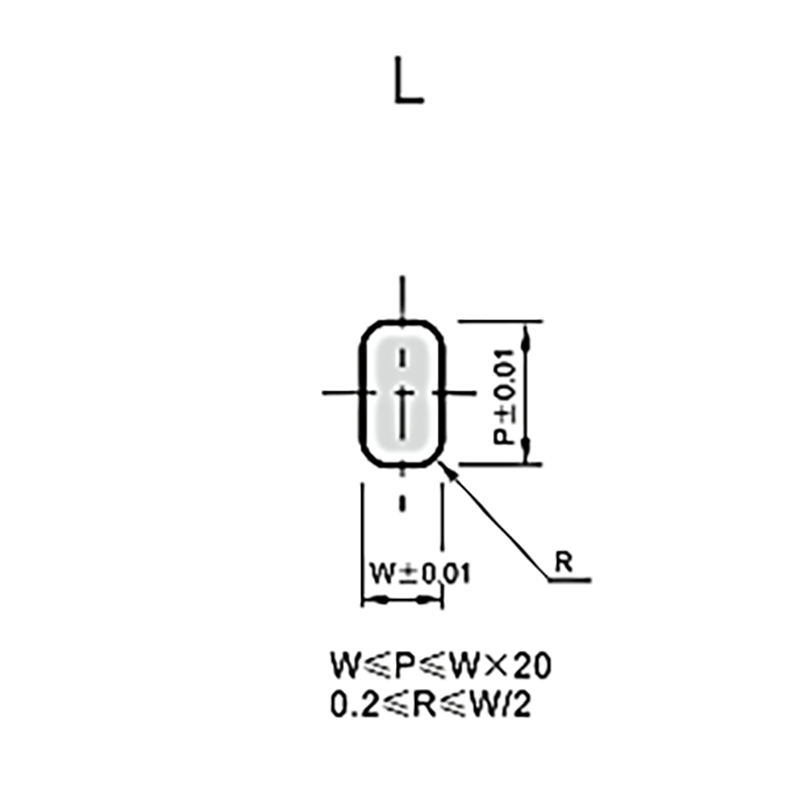

L - Long Life

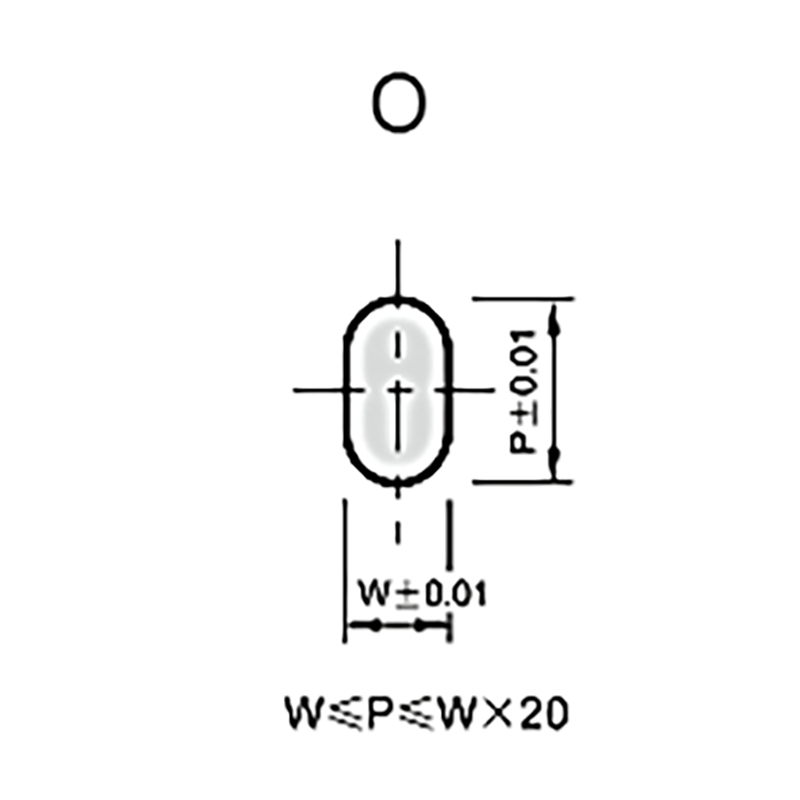

O - Oblong

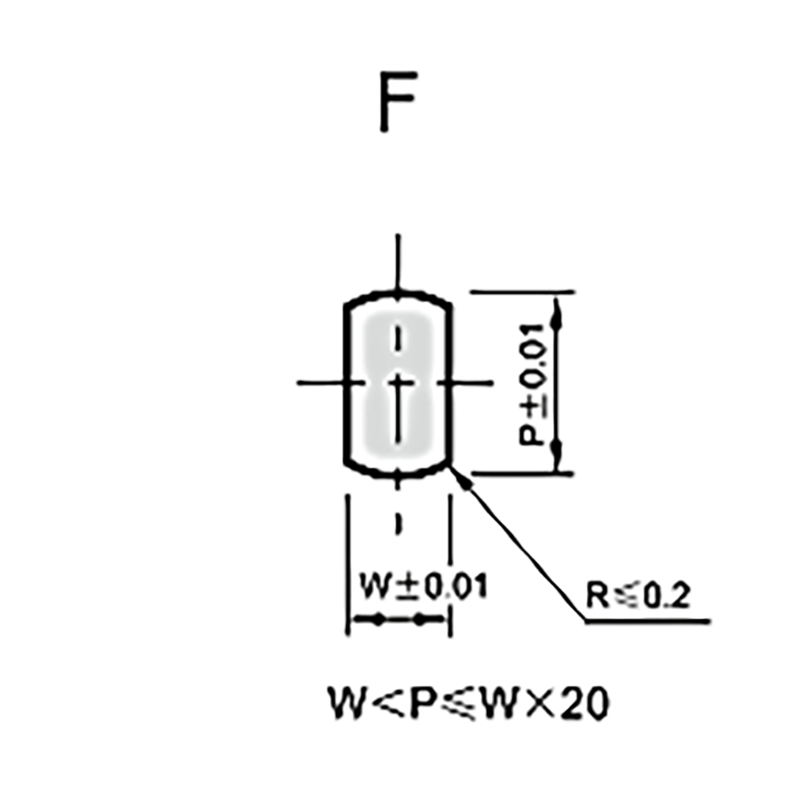

F - Flatted Round
Product Description

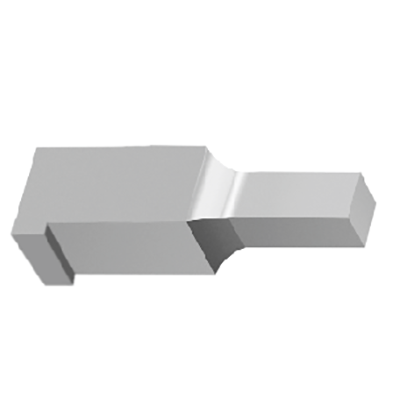

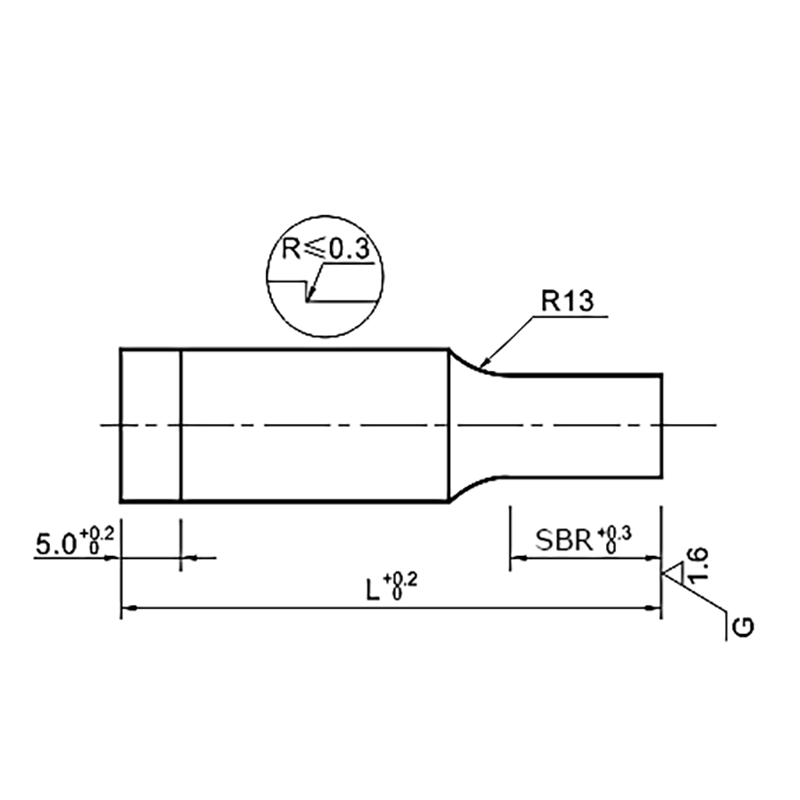

MRU Block Punch, with Single Flange
These block punches with single flange, MRU, are available in a wide range of sizes & materials.
Etching - For ease of reference, parts will be etched with part number and Berger logo unless otherwise specified in the special instruction box when ordering
Specification
Material D2 (HWS) - High carbon high chrome steel, Hardness HRC: 60~62
Material M2 (HSS) - High speed steel, Hardness HRC: 61~63
Material ASP (Vanadis 23) - High performance powdered high speed steel, Hardness HRC: 63~65
Material WC - Tungsten Carbide
Coatings available for M2 and ASP only
Please contact us with your special requests/drawings for quoting. We are happy to convert any punch and die supplier coding
CAD Viewer
Technical Data
