Please select desired options to reveal part number, price and availability
Options
A - Without Lock Nut
B - With Lock Nut
Product Description

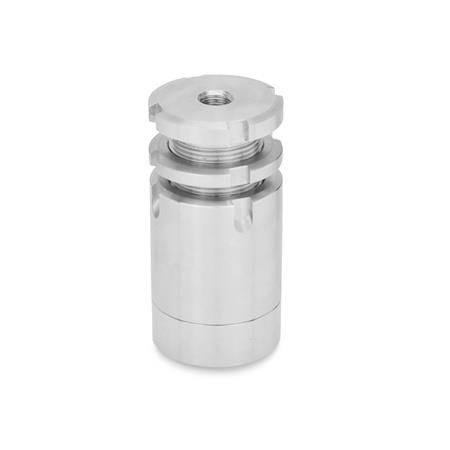

GN360 Levelling Sets, Stainless Steel
GN 360 stainless steel levelling sets are used for levelling and to compensate for any slope when setting up machines and systems.
The thread d2 can also be used as a through-hole for attachment from below. The fine thread d3 allows precise adjustment and readjustment using a DIN 1810 C-Spanner. A circlip limits the maximum path of adjustment.
Specification
Stainless Steel AISI 304 NI
Accessory
C-Spanner DIN1810 - for correct part code size please see table below.
CAD Viewer
Technical Data
