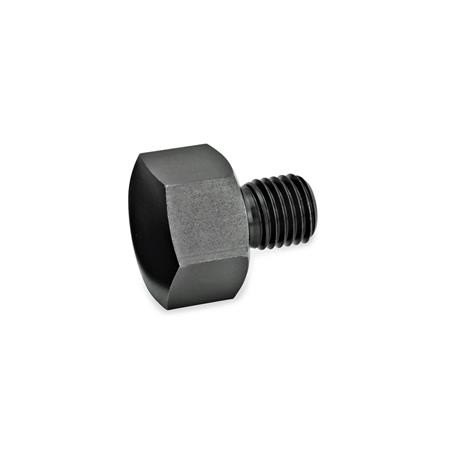

Type K - Spherical contact face

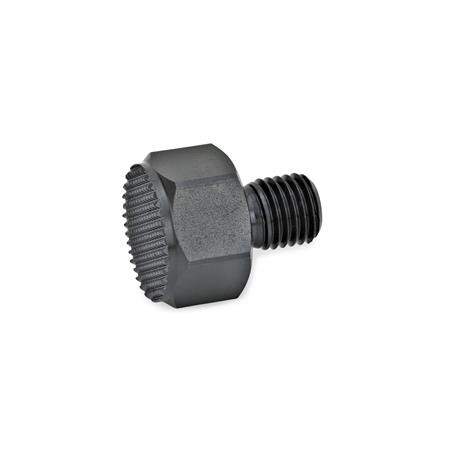

Type R - Serrated contact face


Product Description

GN409.1 Positioning Element, Threaded Stud, Steel

These positioning elements with threaded stud, GN 409.1, are designed for use as locating plungers, stops and thrust blocks. Choice of smooth, spherical or serrated contact face.

Specification

Steel ST - case hardened, blackened.
