GN6311.1 Thrust Pads, Optional Plastic Cap, Steel

CloseNextPrevious



CloseNextPrevious

GN6311.1: Thrust Pad
Type: A



CloseNextPrevious

GN6311.1: Thrust Pad
Type: K



CloseNextPrevious

GN6311.1: Thrust Pad
Type: P



CAD Viewer Technical Data

Series Selector

Options

Type A - without plastic cap

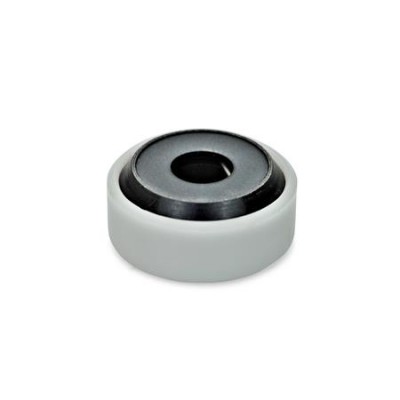

Type K - with plastic cap

Type P - thrust pad surface with prism, without plastic cap

CAD Viewer Technical Data

Product Description

GN6311.1 Thrust Pad, Optional Plastic Cap, Steel

Thrust pads GN 6311.1 are used together with grub screws fitted with thrust points (grub screws DIN6332, tommy screws DIN6304 and DIN6306) to transmit clamping force. They align themselves on uneven and non-parallel surfaces and thus prevent any rotating force being transmitted to the workpiece.

The plastic cap prevents damage to delicate workpieces.

The unique shape of the non-removable retaining ring permits easy insertion and removal of grub screws into or from the thrust pad.

Thrust pads GN6311.1 can also be used in conjunction with DIN6332 grub screws as a levelling pad.

Specification

Steel ST, blackened.

Snap spring - Steel wire spring.

Plastic cap, (Polyacetal POM), natural colour, temperature resistant up to 100°C.
