GN6341 Washers mechanical machine jig construction DIN6340

Standard Machine Elements > Screws, Nuts, Washers Clamping & Supporting Elements > 3.2 Washers
Next Product >

GN6341 Washer, Steel, Optional Cylindrical Bore

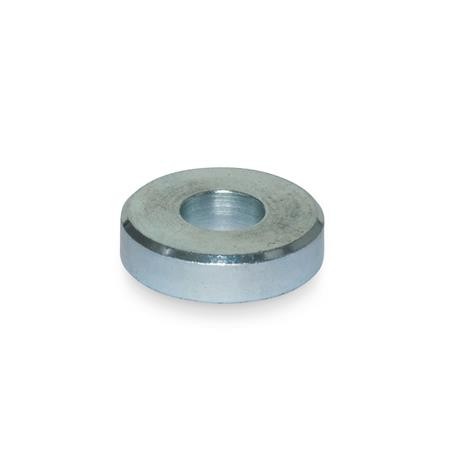

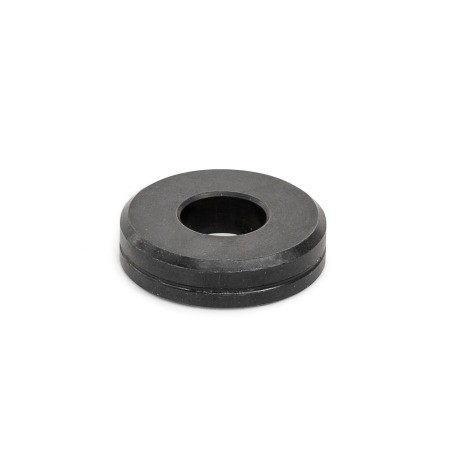

Type A - with cylindrical bore

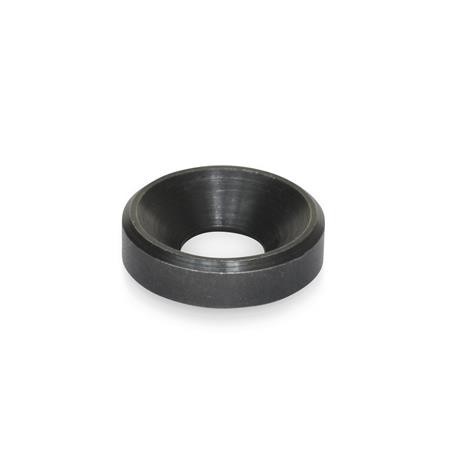

Type B - with bore for countersunk screw

Select Values to Buy:

Tech Spec:



GN6341 Washer, Steel, Optional Cylindrical Bore

These washers are used mainly in mechanical machine and jig construction when Washers DIN6340 washers no longer meet requirements.

Also see Heavy duty washers GN6339 (MOSER-washers, low type), Countersunk washers GN184, and Stainless Steel-Countersunk washers GN184.5,

Specification

Steel ST, turned. Blackened BT. Zinc plated ZB, blue passivated.

RoHS compliant

Select / Deselect Visible Columns
PartCodeMateriald1d2d3sFinishTypeMass

GN6341-ST-4-10-A-BTST4108.42.5BTA0.001
GN6341-ST-4-10-B-BTST4108.42.5BTB0.001
GN6341-ST-4-10-A-ZBST4108.42.5ZBA0.002
GN6341-ST-4-10-B-ZBST4108.42.5ZBB0.001
GN6341-ST-4-13-A-BTST4138.42.5BTA0.002
GN6341-ST-4-13-B-BTST4138.42.5BTB0.002
GN6341-ST-4-13-A-ZBST4138.42.5ZBA0.01
GN6341-ST-4-13-B-ZBST4138.42.5ZBB0.002
GN6341-ST-5-13-A-BTST51310.53BTA0.003
GN6341-ST-5-13-B-BTST51310.53BTB0.002
GN6341-ST-5-13-A-ZBST51310.53ZBA0.003
GN6341-ST-5-13-B-ZBST51310.53ZBB0.002
GN6341-ST-5-16-A-BTST51610.53BTA0.002
GN6341-ST-5-16-B-BTST51610.53BTB0.003
GN6341-ST-5-16-A-ZBST51610.53ZBA0.001
GN6341-ST-5-16-B-ZBST51610.53ZBB0.004
GN6341-ST-6-15-A-BTST61512.64BTA0.004
GN6341-ST-6-15-B-BTST61512.64BTB0.003
GN6341-ST-6-15-A-ZBST61512.64ZBA0.004
GN6341-ST-6-15-B-ZBST61512.64ZBB0.003
GN6341-ST-6-20-A-BTST62012.64BTA0.008
GN6341-ST-6-20-B-BTST62012.64BTB0.008
GN6341-ST-6-20-A-ZBST62012.64ZBA0.009
GN6341-ST-6-20-B-ZBST62012.64ZBB0.008
GN6341-ST-8-20-A-BTST82016.85BTA0.009
GN6341-ST-8-20-B-BTST82016.85BTB0.008
GN6341-ST-8-20-A-ZBST82016.85ZBA0.01
GN6341-ST-8-20-B-ZBST82016.85ZBB0.008
GN6341-ST-8-26-A-BTST82616.85BTA0.018
GN6341-ST-8-26-B-BTST82616.85BTB0.016
GN6341-ST-8-26-A-ZBST82616.85ZBA0.018
GN6341-ST-8-26-B-ZBST82616.85ZBB0.015
GN6341-ST-10-25-A-BTST1025216.5BTA0.02
GN6341-ST-10-25-B-BTST1025216.5BTB0.015
GN6341-ST-10-25-A-ZBST1025216.5ZBA0.02
GN6341-ST-10-25-B-ZBST1025216.5ZBB0.015
GN6341-ST-10-32-A-BTST1032216.5BTA0.04
GN6341-ST-10-32-B-BTST1032216.5BTB0.031
GN6341-ST-10-32-A-ZBST1032216.5ZBA0.036
GN6341-ST-10-32-B-ZBST1032216.5ZBB0.032
GN6341-ST-12-30-A-BTST123025.27.5BTA0.034
GN6341-ST-12-30-B-BTST123025.27.5BTB0.025
GN6341-ST-12-30-A-ZBST123025.27.5ZBA0.034
GN6341-ST-12-30-B-ZBST123025.27.5ZBB0.025
GN6341-ST-12-40-A-BTST124025.27.5BTA0.065
GN6341-ST-12-40-B-BTST124025.27.5BTB0.057
GN6341-ST-12-40-A-ZBST124025.27.5ZBA0.065
GN6341-ST-12-40-B-ZBST124025.27.5ZBB0.06
GN6341-D2-14,5-32-B-PO0
