GN709.2 Clamping Pads Female mobile support clamping back stop supports spring plungers

Standard Machine Elements > Screws, Nuts, Washers Clamping & Supporting Elements > Positioning Elements / Clamping Pads
< Previous Product Next Product >

GN709.2 Clamping Pad, Female Thread, Steel

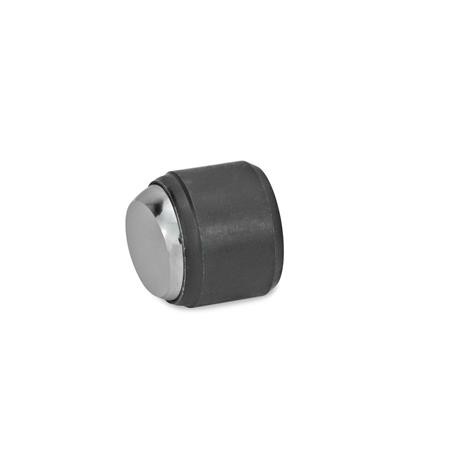

Type B - smooth contact face

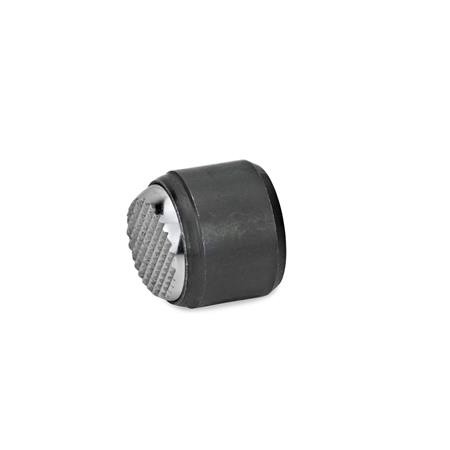

Type - serrated contact face

Select Values to Buy:

Tech Spec:



GN709.2 Clamping Pad, Female Thread, Steel

These clamping pads are used as mobile supports or as spring plungers for clamping workpieces. They can also be used as a back stop.

The ball is limited to an angular movement of 9 degrees.

Available with serrated hard metal ball insert on request.

Specification

Steel - tempered, phosphate treated.

Ball - hardened, blank

RoHS compliant

Also available in male variant, and in stainless steel.

Select / Deselect Visible Columns
Close
HideMaterialShow
Hided1Show
Hided2Show
Hided3Show
Hided4
Ball
Diameter
Show
Hided5
Location
Bore
Show
Hidel1
±0.02
Show
Hidel2
±0.1
Show
Hiden
max.
Show
Hidet
min.
for
Maximal
Static Load
Show
HideStatic Load
max
in kN.
Show
PartCodeMateriald1d2d3d4
Ball
Diameter
d5
Location
Bore
l1
±0.02
l2
±0.1
n
max.
t
min.
for
Maximal
Static Load
Static Load
max
in kN.
Mass

GN709.2-12-BST12M37.2101211113.26100.008
GN709.2-12-RST12M37.2101211113.26100.01
GN709.2-18-BST18M410.51618171748250.03
GN709.2-18-RST18M410.51618171748250.03
GN709.2-28-BST28M520252825255.513900.08
GN709.2-28-RST28M520252825255.513900.08
GN709.2-12-BR0.008
GN709.2-12-RR0.032
GN709.2-18-BR0.039
GN709.2-18-RR0.04
GN709.2-28-BR0.14
GN709.2-28-RR0.15
