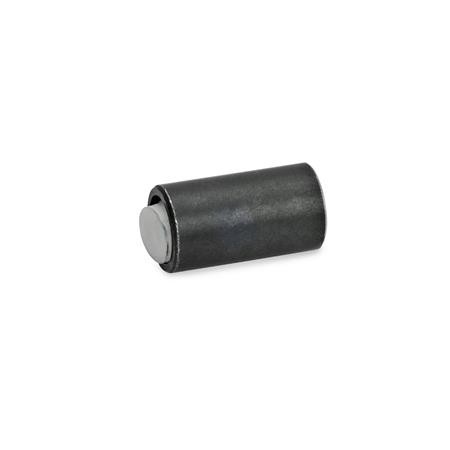

GN709.7 Clamping Pad, with O-ring, Steel





Type B - Ball, steel, smooth contact face

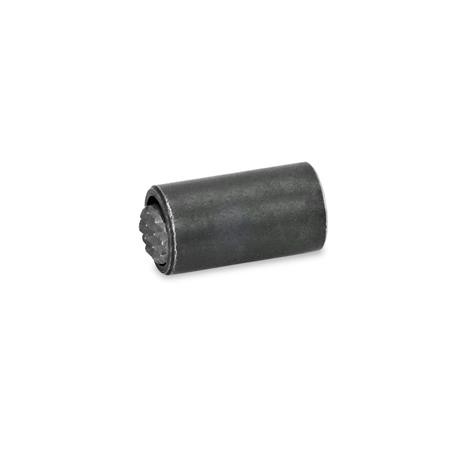

Type R - Ball, steel, serrated contact face

Type K - Ball, plastic, smooth contact face

Select Values to Buy:

Tech Spec:



GN709.7 Clamping Pad, with O-ring, Steel

These clamping pads are also used in jig and fixture construction, for example for clamping workpieces, as movable bearing surface or as stop.

The swivel-mounted ball compensates uneven and non-parallel contact surfaces by as much as 10 degrees. It is also secured against further twisting.

The O ring holds the ball in position and prevents dirt from penetrating, resulting in a long service life and constant mobility.

Specification

Steel, tempered, tensile strength class 10.9

Ball - Steel, hardened (54+2 HRC). Plastic, (Polyacetal POM)

O-Ring - Rubber NBR (Perbunan)

RoHS compliant

Also available in adjustable variant.

Select / Deselect Visible Columns
Close
HideMaterialShow
Hided1Show
Hidel1 ±0.13Show
Hided2Show
Hided3Show
Hided4 Ball DiameterShow
Hidel2Show
HideStatic Load
Max.
in kN
Type B
Show
HideStatic Load
Max.
in kN
Type R
Show
HideStatic Load
Max.
in kN
Type K
Show
HideTypeShow
PartCodeMateriald1l1 ±0.13d2d3d4 Ball Diameterl2Static Load
Max.
in kN
Type B
Static Load
Max.
in kN
Type R
Static Load
Max.
in kN
Type K
TypeMass

GN709.7-10-12-BST1012M4675.61262B0.007
GN709.7-10-12-RST1012M4675.61262R0.007
GN709.7-10-12-KST1012M4675.61262K0.005
GN709.7-10-25-BST1025M46718.61262B0.014
GN709.7-10-25-RST1025M46718.61262R0.014
GN709.7-10-25-KST1025M46718.61262K0.012
GN709.7-13-16-BST1316M58.5107.22094B0.015
GN709.7-13-16-RST1316M58.5107.22094R0.015
GN709.7-13-16-KST1316M58.5107.22094K0.012
GN709.7-13-25-BST1325M58.51016.22094B0.024
GN709.7-13-25-RST1325M58.51016.22094R0.023
GN709.7-13-25-KST1325M58.51016.22094K0.02
