Standard Machine Elements > Levelling Feet, Lifting Gear and Rubber Elements > Vibration/ Shock absorption mounts
< Previous Product

GN806 Protective Cap, Neoprene

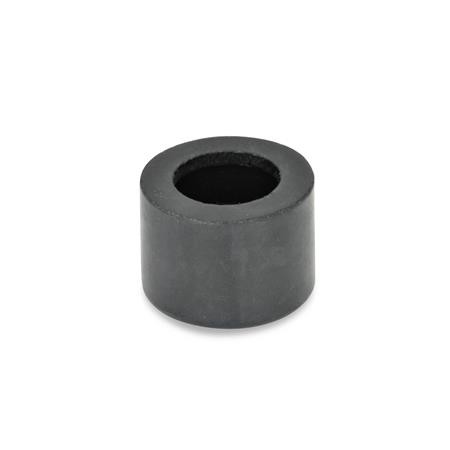

Type A - Protective cap (without nut)

Type B - protective cap with threaded bush

Select Values to Buy:

Tech Spec:



GN806 Protective Cap, Neoprene

Protective caps GN806 can be used with hexagon screws ISO4017 or together with threaded pins type B as thrust pins with soft clamping head surface, or as soft end stop bolts.

A typical application is in conjunction with toggle clamps (product group 2.4).
Clamping bolts GN807 specified in this latter group consists of hexagon screws with protective caps and two nuts.

Specification

Protective cap, Neoprene, 85 Shore hardness, black, Threaded bush, steel, zinc plated, blue passivated.

*)Protective caps d1 = 11 are not available in Type B (with a threaded bush).

RoHS compliant

Select / Deselect Visible Columns
PartCoded1Typed2d3d4h1h2A/Ft1t2t3Mass

GN806-11-A11AM45.58.26.5~~14~0.001
GN806-12-A12AM579.3811101.55.360.001
GN806-12-B12BM579.3811101.55.360.004
GN806-15-A15AM68.511.51014122670.002
GN806-15-B15BM68.511.51014122670.007
GN806-19-A19AM8111513181627.58.50.004
GN806-19-B19BM8111513181627.58.50.016
GN806-24-A24AM1013201623.5212.29.2100.006
GN806-24-B24BM1013201623.5212.29.2100.037
GN806-26-A26AM1216221926222.510.5120.009
GN806-26-B26BM1216221926222.510.5120.045
#45182.78~45185.2#
