Please select desired options to reveal part number, price and availability
Options

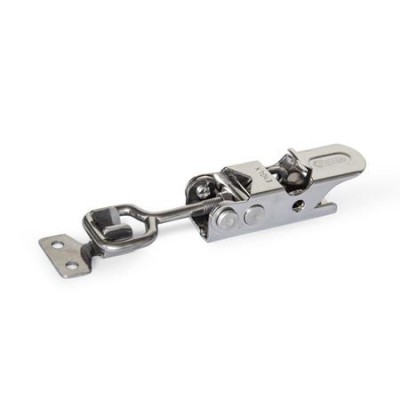

Type G - Latch bolt with loop, with catch

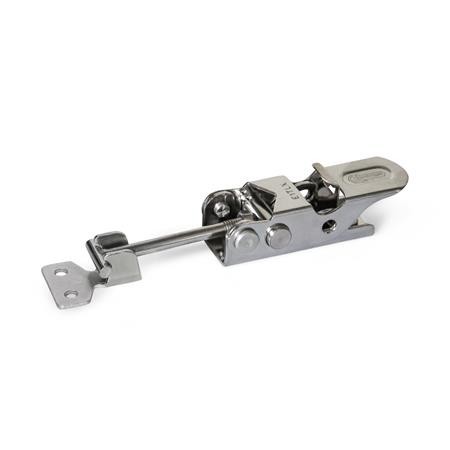

Type T - Latch bolt with T-head, with catch
Product Description
GN761.1 Toggle Latches, Steel/ Stainless Steel, with Locking Mechanism
Toggle latches GN 761.1 are especially suited for rapid closing and fastening of covers, container lids and boxes.
When the lever is closed, the eccentric configuration of the rod shaft causes the latch bolt to move towards the catch. At the end of the lever movement, the rod shaft has exceeded the eccentric dead center point, thereby automatically keeping the toggle latch closed.
For toggle latches GN761.1 with lock mechanism, when the lever is closed, a safety hook clicks firmly into the base body. This prevents inadvertent or vibration-induced release from the clamping position. To open the latch, the safety hook can be unlocked with a single hand.
The latch bolts of the toggle latches can be adjusted within the adjustable range w2. The catch is included.
Specification
Steel, zinc plated, blue passivated ST
Stainless Steel AISI 304 NI
CAD Viewer
Technical Data
