GN810.1 Vertical Clamps with Base stepped side washers clamping bolt retainers

Standard Machine Elements > Toggle Clamps, Power & Hook Clamps > Toggle Clamps
< Previous Product Next Product >

GN810.1 Vertical Clamps With Vertical Base

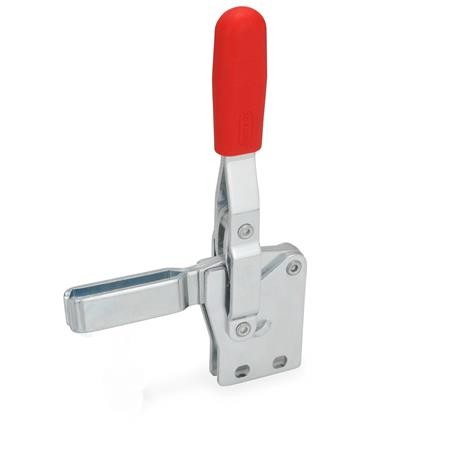

Type B - forked clamping arm

Type F - solid clamping arm

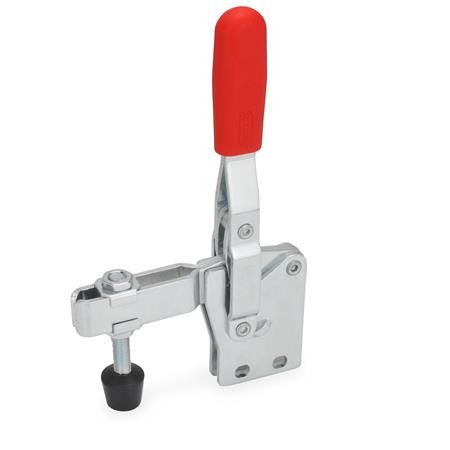

Type BCU-bar version, with two flanged washers and GN708.1 Spindle Assembly

Select Values to Buy:

Tech Spec:



GN810.1 Vertical Clamps With Vertical Base

These certical acting toggle clamps GN810.1 work according to the toggle principle: both the lever and clamping bar move in the same direction. In the clamped position the operating lever is in its vertical position.

Vertical acting toggle clamps in the U bar version with two flanged washers (Type B) can accommodate an application specific clamping bolt. A spindle assembly with neoprene rubber tip is also included for Type BC (GN708.1).

Type F version can either be utilized by welding the clasp which can then accommodate an application specific hold-down fastener component, or by utilizing the bar in conjunction with GN809 Clamp Mounts to hold the work piece in place.

Stepped side washers and clamping bolt retainers are included.

Compatible with GN708.1 clamping bolt, with rubber pressure pad.

Specification

Parts in sheet metal - Case hardening steel C 10 zinc plated, blue passivated

Bearing pins - tempered

Bearing rivets (from size 200 upwards) - case hardened

All moving parts lubricated with special grease

Solid moulded plastic handle sleeve - red, oil resistant

RoHS compliant

Also available in stainless steel.

Select / Deselect Visible Columns
PartCodeMaterialSizeTypeFH in
Holding
Capacity
ab1b2b3b4d1d2h1h2h3h4h5l1 Type B/
Type BC
l1 Type Fl2l3l4m1m2m3m4rswMass

GN810.1-75-BC1075B7502029845.2M54.51093211~~66.56731.5~~15165562.5~~0.1
GN810.1-75-BCC1075BC7502029845.2M54.51093211191766.56731.5~4515165562.5~150.109
GN810.1-75-FC1075F750~2984~M54.51093211~~66.567~41~15165562.54~0.102
GN810.1-130-BC10130B105028351056.2M65.515641.516~~858642~~12.5196.57.579~~0.229
GN810.1-130-BCC10130BC105028351056.2M65.515641.51625.525858642~5512.5196.57.579~17.50.2
GN810.1-130-FC10130F1050~35105~M65.515641.516~~8586~54~12.5196.57.5795~0.234
GN810.1-230-BC10230B200040431268.5M86.51834818~~110.511258~~19206.56.5104~~0.387
GN810.1-230-BCC10230BC200040431268.5M86.518348183024110.511258~6819206.56.5104~200.4
GN810.1-230-FC10230F2000~43126~M86.51834818~~110.5112~73~19206.56.51046~0.4
GN810.1-330-BC10330B2400435014710.5M108.52186622~~129130.566~~28.732.3109.5122~~0.55
GN810.1-330-BCC10330BC2400435014710.5M108.521866223739.5129130.566~7728.732.3109.5122~190.6
GN810.1-330-FC10330F2400~50147~M108.52186622~~129130.5~86~28.732.3109.51227~0.6
GN810.1-430-BC10430B28006458181012.5M128.526877.526~~16416688~~32321010156~~1.14
GN810.1-430-BCC10430BC28006458181012.5M128.526877.526434516416688~10032321010156~331.1
GN810.1-430-FC10430F2800~581810~M128.526877.526~~164166~1143232101015610~1.1
GN810.1-530-BC10530B45009077181012.5M1212.5337117.532~~223225128~~505112.512.5212~~1.87
GN810.1-530-BCC10530BC45009077181012.5M1212.5337117.5324985223225128~100505112.512.5212~271.96
GN810.1-530-FC10530F4500~771810~M1212.5337117.532~~223225~155~505112.512.521210~1.9
