GN810 Vertical Clamps, Horizontal Base, Stainless Steel



Type A - forked clamping arm

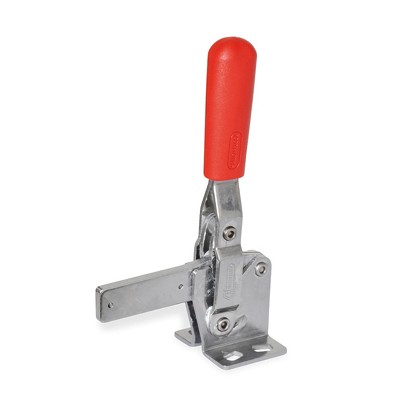

Type E - solid clamping arm

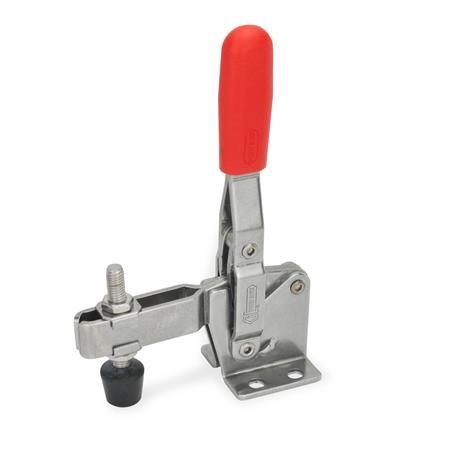

Type CU-bar version, with two flanged washers and GN708.1 Spindle Assembly

Select Values to Buy:

Tech Spec:



GN810 Vertical Clamps, Horizontal Base, Stainless Steel

These GN810 vertical acting toggle clamps work according to the toggle principle: the lever and clamping bar move in the same direction. In the clamped position the operating lever is in its vertical position.

Vertical acting toggle clamps in the U-bar version with two flanged washers (Type A) can accommodate an application specific clamping screw. A spindle assembly with neoprene rubber tip is also included for Type C (GN708.1).

Clamps can be easily disassembled in order to adjust or reshape the parts according to usage requirements.

Stepped side washers and clamping bolt retainers are included.

Being made of stainless steel, these clamps are suitable for use in a clean room environment, such as found in the food and pharmaceutical industries and their associated processing and packaging.

Compatible with GN708.1 clamping bolt, with rubber pressure pad.

Specification

Stainless Steel NI AISI 304

All moving parts lubricated with special grease

Solid moulded plastic handle sleeve - red, oil resistant

RoHS compliant

Also available in steel.

Select / Deselect Visible Columns
PartCodeGrÖßeTypeMaterialFHab1b2b3d1d2h1h2h3h4h5l1 Type A/
Type C
l1 Type El2l3l4m1m2m3m4rs1s2wMass

GN810-75-A-NI75ANI7502029345.2M54.59820.511~~66.56731.5~~1516242462.52~~0.092
GN810-75-C-NI75CNI7502029345.2M54.59820.511195.566.56731.5~451516242462.52~150.092
GN810-75-E-NI75ENI750~2934~M54.59820.511~~66.567~41~1516242462.524~0.1
GN810-130-A-NI130ANI10502835426.2M65.51422816~~858642~~12.519272979.52.5~~0.228
GN810-130-C-NI130CNI10502835426.2M65.5142281625.511.3858642~5512.519272979.52.5~17.50.228
GN810-130-E-NI130ENI1050~3542~M65.51422816~~8586~54~12.519272979.52.55~0.23
GN810-230-A-NI230ANI20004043458.5M86.516833.518~~110.511258~~192032321043~~0.379
GN810-230-C-NI230CNI20004043458.5M86.516833.518309.5110.511258~68192032321043~200.3
GN810-230-E-NI230ENI2000~4345~M86.516833.518~~110.5112~73~1920323210436~0.389
