GN810 Vertical Clamps Horizontal Base metal clamps clamping forked solid parts GN 810

Standard Machine Elements > Toggle Clamps, Power & Hook Clamps > Toggle Clamps
Next Product >

GN810 Vertical Clamp, Hardened Steel, Zinc Plated with Horizontal Base

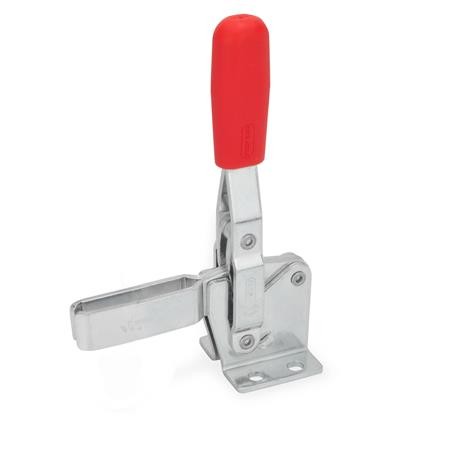

Type A - forked clamping arm

Type E - solid clamping arm

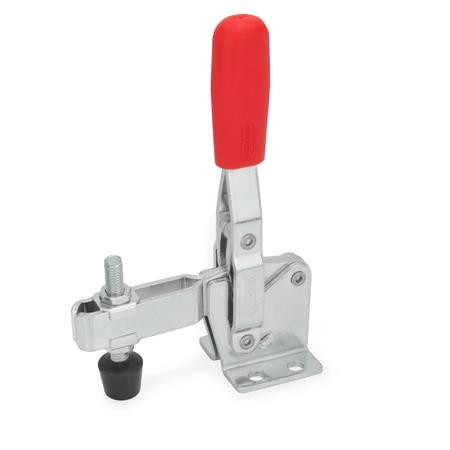

Type CU-bar version, with two flanged washers and GN708.1 Spindle Assembly

Select Values to Buy:

Tech Spec:



GN 810 Vertical Clamp, Hardened Steel, Zinc Plated with Horizontal Base

These GN810 vertical acting toggle clamps work according to the toggle principle: the lever and clamping bar move in the same direction. In the clamped position the operating lever is in its vertical position.

Vertical acting toggle clamps in the U bar version with two flanged washers (Type A) can accommodate an application specific clamping screw. A spindle assembly with neoprene rubber tip is also included for Type C (GN708.1).

The type E version can either be utilized by welding the clasp which can then accommodate an application specific hold-down fastener component, or by utilizing the bar in conjunction with the GN809 Clamp Mounts to hold the work piece in place.

Clamps can be easily disassembled in order to adjust or reshape the parts according to usage requirements. Stepped side washers and clamping bolt retainers are included.

Compatible with GN708.1 clamping bolt, with rubber tip.

Specification

Parts in sheet metal - Case hardening steel C 10 zinc plated, blue passivated

Bearing pins - tempered

Bearing rivets (from size 200 upwards) - case hardened

All moving parts lubricated with special grease

Solid moulded plastic handle sleeve - red, oil resistant

Also available in stainless steel, in a pneumatically operated version GN860 and pneumatically operated version with magnetic piston GN860.

RoHS compliant

Select / Deselect Visible Columns
PartCodeMaterialSizeTypeFH in N
Holding
Capacity
ab1b2b3d1d2h1h2h3h4h5l1 Type A/
Type C
l1 Type El2l3l4m1m2m3m4rs1s2wMass

GN810-75-AC1075A7502029345.2M54.59820.511~~66.56731.5~~1516242462.52~~0.098
GN810-75-CC1075C7502029345.2M54.59820.511195.566.56731.5~451516242462.52~150.1
GN810-75-EC1075E750~2934~M54.59820.511~~66.567~41~1516242462.524~0.106
GN810-130-AC10130A10502835426.2M65.51422816~~858642~~12.519272979.52.5~~0.22
GN810-130-CC10130C10502835426.2M65.5142281625.511.3858642~5512.519272979.52.5~17.50.23
GN810-130-EC10130E1050~3542~M65.51422816~~8586~54~12.519272979.52.55~0.22
GN810-230-AC10230A20004043458.5M86.516833.518~~110.511258~~192032321043~~0.36
GN810-230-CC10230C20004043458.5M86.516833.518309.5110.511258~68192032321043~200.39
GN810-230-EC10230E2000~4345~M86.516833.518~~110.5112~73~1920323210436~0.401
GN810-330-AC10330A240043506510.5M108.51954322~~129130.566~~293246451223.5~~0.601
GN810-330-CC10330C240043506510.5M108.519543223715129130.566~77293246451223.5~190.6
GN810-330-EC10330E2400~5065~M108.51954322~~129130.5~86~293246451223.57~0.58
GN810-430-AC10430A280064586512.5M128.524755.526~~16416688~~323245451564~~1.06
GN810-430-CC10430C280064586512.5M128.524755.526432316416688~100323245451564~331.1
GN810-430-EC10430E2800~5865~M128.524755.526~~164166~114~32324545156410~1.09
GN810-530-AC10530A450090809512.5M1212.530384.532~~223225125~~505170702127~~2
GN810-530-CC10530C450090809512.5M1212.530384.5324952223225125~100505170702127~272.18
GN810-530-EC10530E4500~8095~M1212.530384.532~~223225~152~50517070212710~2.066
