GN820.4 Stainless Steel Horizontal Clamps with Safety Hook and Vertical Base

images/300/GN820.4-Stainless-Steel-Horizontal-clamps-with-safety-hook-with-vertical-base-drawing_W.png



Type NL - forked clamping arm

Type PL - solid clamping arm

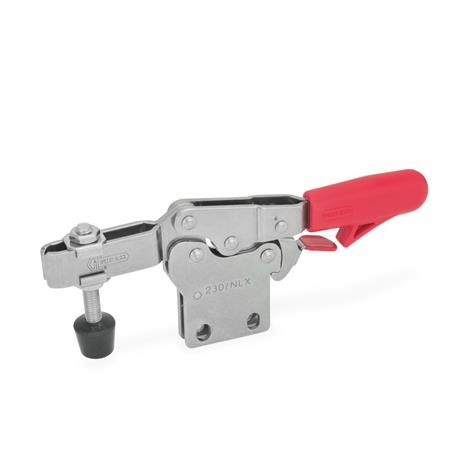

Type NLCU-bar version, with two flanged washers and GN708.1 Spindle Assembly

Select Values to Buy:

Tech Spec:


GN820.4
Stainless Steel Horizontal Clamps with Safety Hook and Vertical Base

A special feature of these horizontal clamps GN820.4 is its low profile in clamping position. They are designed in such a way to avoid the operator's fingers being caught between the retracting clamping arm and the operating handle.

These clamps are fitted with a safety function. During closing, a safety hook ensures a form-locking bolting connection. It prevents the inadvertent unlocking of the clamping position caused by vibrations. To open, turn the safety hook out of the bolting connection. This can be done with a one-hand operation.

Being made of stainless steel, these clamps are suitable for use in a clean room environment, such as found in the food and pharmaceutical industries and their associated processing and packaging.

They work according to the toggle principle: the lever and clamping bar move in the opposite direction. They require less space for the clamping action.

Horizontal acting toggle clamps in the U-bar version with two flanged washers (Type NL) can accommodate an application specific clamping screw. A spindle assembly with neoprene rubber tip is also included for Type NLC (GN708.1).

Type PL can either be utilized by welding the clasp which can then accommodate an application specific hold-down fastener component, or by utilizing the bar in conjunction with the GN809 clamp mounts to hold the work piece in place.

Stepped side washers and clamping bolt retainers where required are included.

Accessories

Clamping bolts GN708.1 with rubber tip

Holders for clamping bolts GN801 (for type NL)

Holders for clamping bolts GN809 (for type PL)

Specification

Stainless Steel NI AISI 304

Bearing pins - tempered

Bearing rivets (from size 350 upwards) - case hardened

All moving parts lubricated with special grease

Solid moulded handle sleeve - plastic, red, oil resistant

RoHS compliant

Select / Deselect Visible Columns
PartCodeSizeTypeMaterialFH in N
Holding
Capacity
ab1b2b3b4d1d2h1h2h3h4h5l1l2l3l4l5m1m2m3rswMass

GN820.4-75-NL-NI75NLNI9002028845.3M54.545.52911~~1186840~4513.53.55434~0.09
GN820.4-75-NLC-NI75NLCNI9002028845.3M54.545.5291119141186840~4513.53.55434150.1
GN820.4-75-PL-NI75PLNI900~2884~M54.545.52911~~11868~49.54513.53.55434~0.09
GN820.4-130-NL-NI130NLNI100032361056.3M65.664.54416~~1729253~55265.88.8625~0.2
GN820.4-130-NLC-NI130NLCNI100032361056.3M65.664.5441625.527.51729253~55265.88.862517.50.26
GN820.4-130-PL-NI130PLNI1000~36105~M65.664.54416~~17292~6455265.88.8625~0.2
GN820.4-230-NL-NI230NLNI170037441268.5M86.675.55118~~19610963.5~68266.59736~0.32
GN820.4-230-NLC-NI230NLCNI170037441268.5M86.675.55118302719610963.5~68266.59736200.354
GN820.4-230-PL-NI230PLNI1700~44126~M86.675.55118~~196109~7868266.59736~0.33
