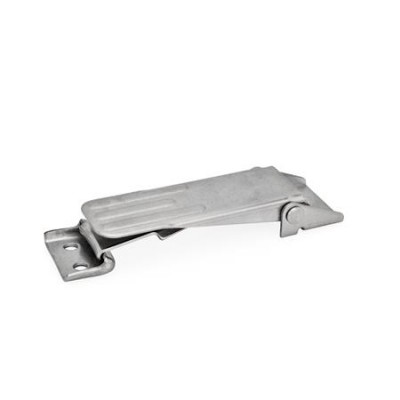

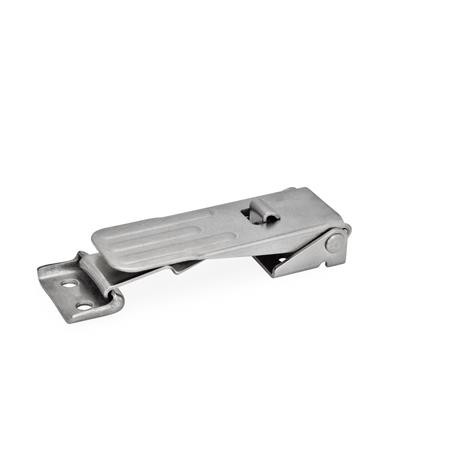

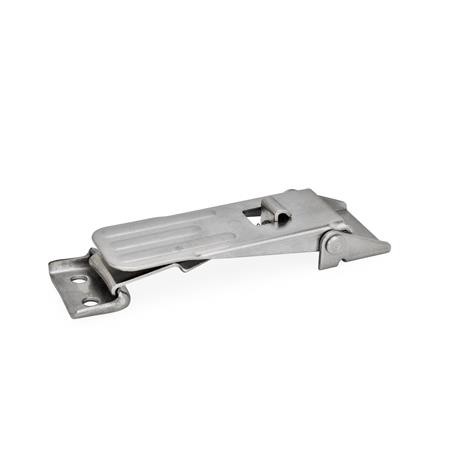

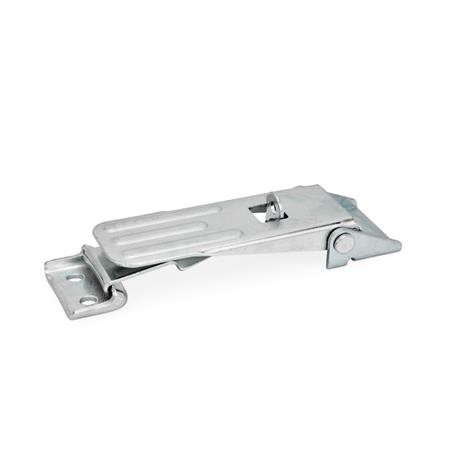

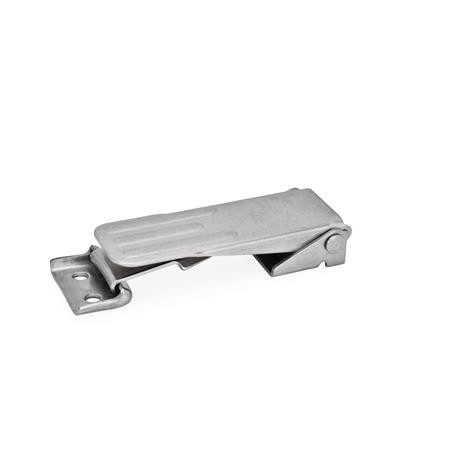

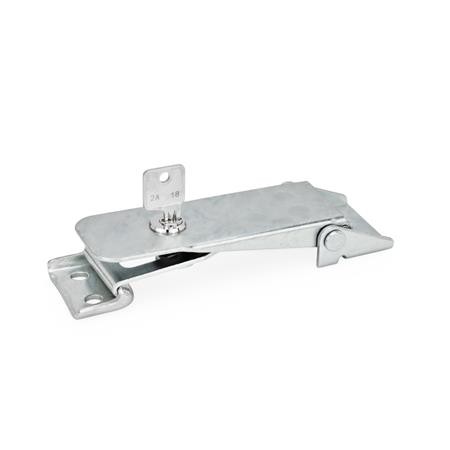

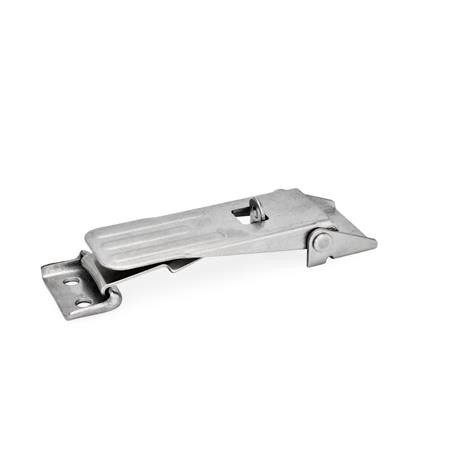

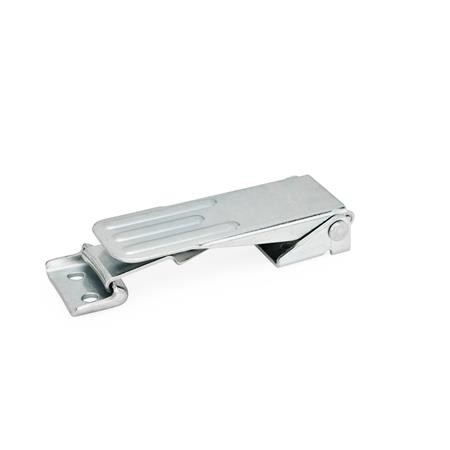

GN821 Hook Clamp, Steel or Stainless Steel, Lockable

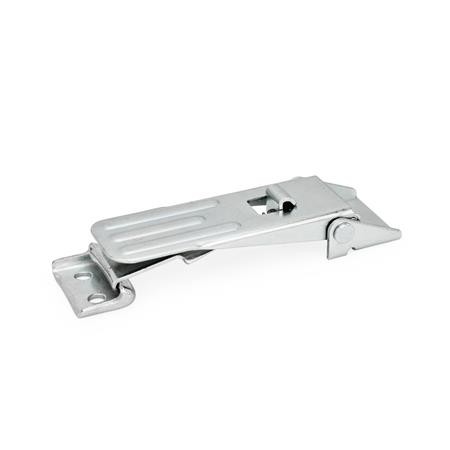

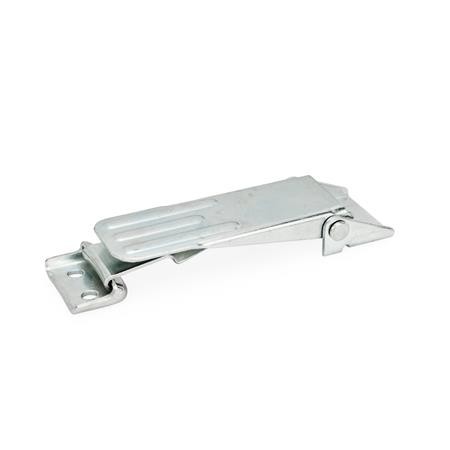

Identification no. 1 long type

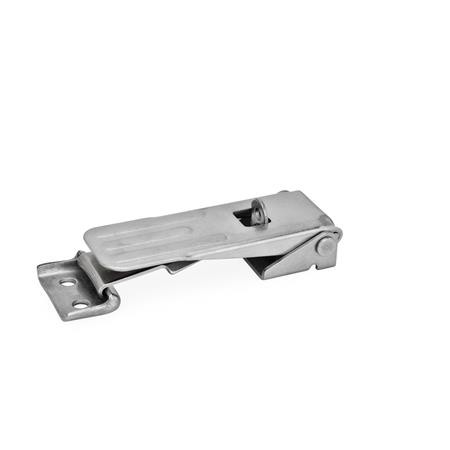

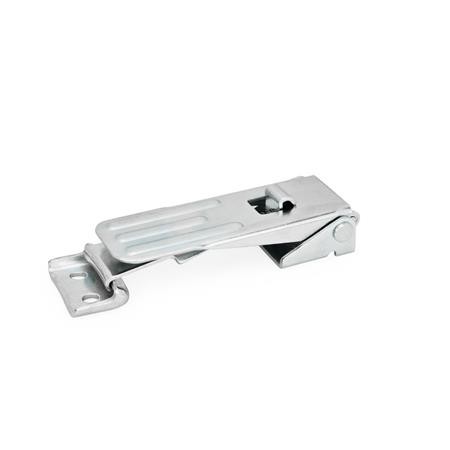

Identification no. 2 short type

Select Values to Buy:

Tech Spec:



GN821 Hook Clamp, Steel or Stainless Steel, Lockable

Hook clamps GN821 are used among others for the secure holding of flaps and container lids. The clamps will lock securely over the centre and are thus vibration proof. Robust and low profile design.

The stroke w1 of the clamping hook can pull the parts to be clamped together by up to 6mm. The range w2 can be adjusted on the M6 threaded spindle at the clamping hook.

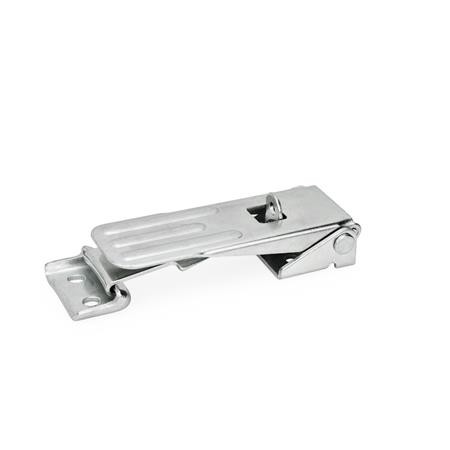

The types S, SV and SS prevent unwanted release of the hook clamp.

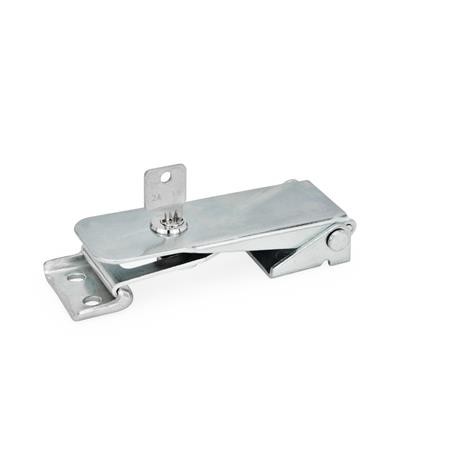

In the standard version the hook clamps of type SS have the same lock and/or the same key.

The load specified in the table are simply guide line values for a nominal static pulling force which the lock can withstand. Depending on the conditions under which these hook lock clamps are used such as vibration or shock loads, the holding capacity can be adversely affected.

Specification

Steel ST
zinc plated, blue passivated

Stainless Steel NI
only type A, S and SV Pressed parts AISI 304

Clamping hook and pin AISI 303

RoHS compliant



Select / Deselect Visible Columns
Close
HideSizeShow
HideTypeShow
HideMaterialShow
HideIdentification No.Show
HideFH in N
Holding
Capacity
Show
Hideb1Show
Hideb2Show
Hideb3Show
Hideb4Show
Hideh1Show
Hideh2Show
Hideh3Show
Hideh4Show
Hidel1 min.Coding
1Type A/
Type SV
Show
Hidel1 Type S/
Type SS
Show
Hidel3Show
Hidel4 min.Coding
Type A/
Type SV
Show
Hidel4 Type S/
Type SS
Show
Hidel5 min.Coding
Type A/
Type SV
Show
Hidel5 Type S/
Type SS
Show
HidedShow
Hidem1Show
Hidem2Show
Hidem3Show
HiderShow
Hidew1Show
Hidew2 Adjustable
range Type A/
Type SV
Show
Hidew2 Type S/
Type SS
Show
PartCodeSizeTypeMaterialIdentification No.FH in N
Holding
Capacity
b1b2b3b4h1h2h3h4l1 min.Coding
1Type A/
Type SV
l1 Type S/
Type SS
l3l4 min.Coding
Type A/
Type SV
l4 Type S/
Type SS
l5 min.Coding
Type A/
Type SV
l5 Type S/
Type SS
dm1m2m3rw1w2 Adjustable
range Type A/
Type SV
w2 Type S/
Type SS
Mass

GN821-400-A-ST-1400AST1400046.5453827221228.532.5144147120.5123.53280.583.51181216.3201211.5107.56.50.213
GN821-400-A-ST-2400AST2400046.5453827221228.532.5144147120.5123.53280.583.51181216.3201211.5107.56.50.21
GN821-400-S-ST-1400SST1400046.5453827221228.532.5144147120.5123.53280.583.51181216.3201211.5107.56.50.22
GN821-400-S-ST-2400SST2400046.5453827221228.532.5144147120.5123.53280.583.51181216.3201211.5107.56.50.204
GN821-400-SV-ST-1400SVST1400046.5453827221228.532.5144147120.5123.53280.583.51181216.3201211.5107.56.50.22
GN821-400-SV-ST-2400SVST2400046.5453827221228.532.5144147120.5123.53280.583.51181216.3201211.5107.56.50.22
GN821-400-SS-ST-1400SSST1400046.5453827221228.532.5144147120.5123.53280.583.51181216.3201211.5107.56.50.24
GN821-400-A-NI-1400ANI1400046.5453827221228.532.5144147120.5123.53280.583.51181216.3201211.5107.56.50.208
GN821-400-A-NI-2400ANI2400046.5453827221228.532.5144147120.5123.53280.583.51181216.3201211.5107.56.50.22
GN821-400-S-NI-1400SNI1400046.5453827221228.532.5144147120.5123.53280.583.51181216.3201211.5107.56.50.22
GN821-400-S-NI-2400SNI2400046.5453827221228.532.5144147120.5123.53280.583.51181216.3201211.5107.56.50.218
GN821-400-SV-NI-1400SVNI1400046.5453827221228.532.5144147120.5123.53280.583.51181216.3201211.5107.56.50.22
GN821-400-SV-NI-2400SVNI2400046.5453827221228.532.5144147120.5123.53280.583.51181216.3201211.5107.56.50.22
GN821-400-SS-ST-20.24
