GN832.2 Hook Clamp, Steel or Stainless, Compact Mounting

CloseNextPrevious
CloseNextPrevious
CloseNextPrevious
CloseNextPrevious
CAD Viewer Technical Data

Series Selector

Options

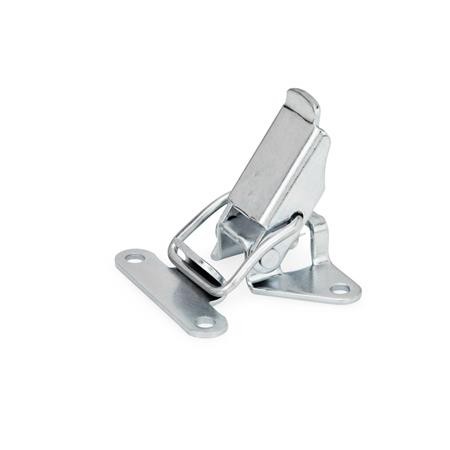

Type A - without hole for lock pad

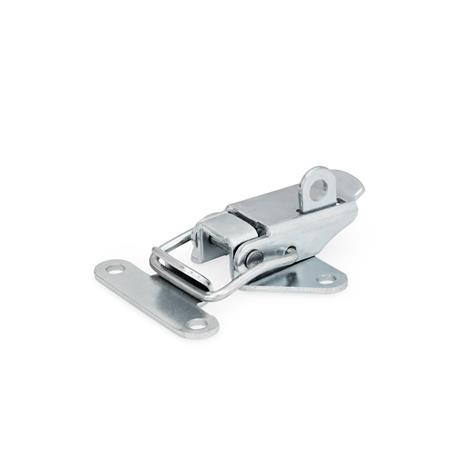

Type V - with hole for lock pad (only in ST)

CAD Viewer Technical Data

Product Description

GN832.2 Hook Clamp, Steel or Stainless, Compact Mounting

Hook clamps GN 832.2 are used for the secure holding of flaps, container lids, machine coverings and similar applications. The clamping stroke exceeds the dead centre point which makes them vibration proof.

Due to the elasticity of the pulling latch the compo-nents to be linked are held in position.

The loads specified in the above table are simply guide line values for a nominal static pulling force which the lock can withstand.

Depending on the conditions under which these hook clamps are used such as vibration or shock loads, the pulling force can be adversely affected.

Specification

Steel ST zinc plated, blue passivated

Stainless Steel NI AISI 304
