Product Description

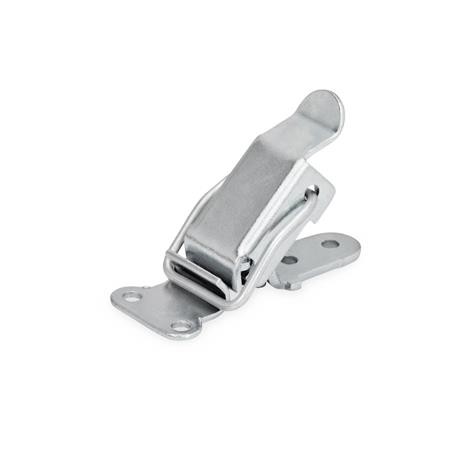

GN832.4 Hook Clamp, Steel or Stainless, Slim Compact Mounting
Hook clamps GN 832.4 are used for the secure holding of flaps, container lids, machine coverings and similar applications. The clamping stroke exceeds the dead centre point which makes them vibration proof.
Due to the elasticity of the pulling latch the components to be linked are held in position.
The loads specified in the above table are simply guide line values for a nominal static pulling force which the lock can withstand.
Depending on the conditions under which these hook clamps are used such as vibration or shock loads, the pulling force can be adversely affected.
Specification
Steel ST zinc plated, blue passivated
Stainless Steel NI AISI 304
CAD Viewer
Technical Data
