GN850.1 Toggle Clamps, for Pulling Action, Stainless Steel

Choose your Part

Please select desired options to reveal part number, price and availability

Options

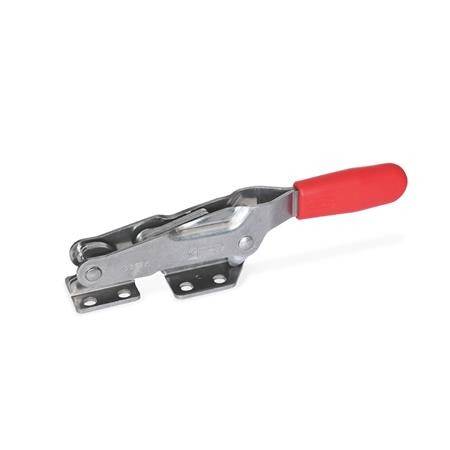

Type T - with draw axle, with catch

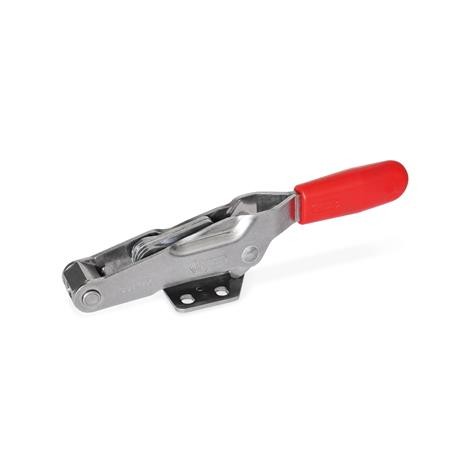

Type TF - without draw axle, without catch

Type TG - with draw axle, with catch, with oval head latch bolt

Type TT - with draw axle, with catch, with T-head latch bolt

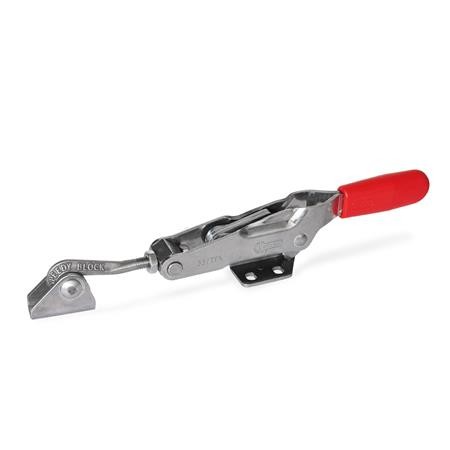

Type TU - with draw axle, with catch, with J-hook latch bolt

Product Description

GN850.1 Toggle Clamps, for Pulling Action, Stainless Steel

GN 850.1 toggle clamps are especially suited for rapid closing and fastening of lids, flaps and molds.

During clamping, the pivoting movement of the clamping lever is transformed into an axial movement of the tension axis / tension hook and ensures form-fitting retention.

Toggle clamps of type T are equipped with a tension axis firmly attached to the clamping arm. Type TF can be used for specific applications by attaching individual latch bolts. Latch bolts for latch-type toggle clamps of types TG, TT and TU can be adjusted along the adjustment dimension w₂.

Specification

Stainless Steel NI - AISI 304

All moving parts lubricated with special grease

Hand grip - high quality, oil resistant, red plastic
