GN850.2 Toggle Clamps with Safety Hook, Pulling Action

CAD Viewer Technical Data

Series Selector

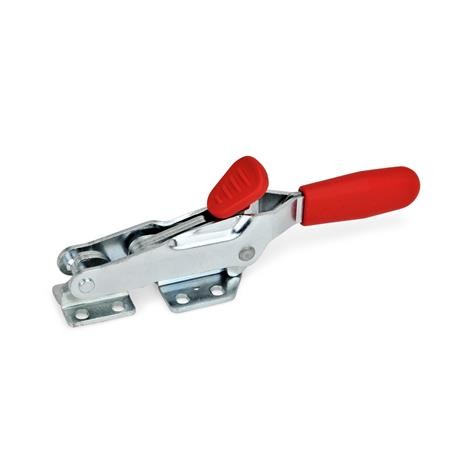

Type Twith draw axle, with catch

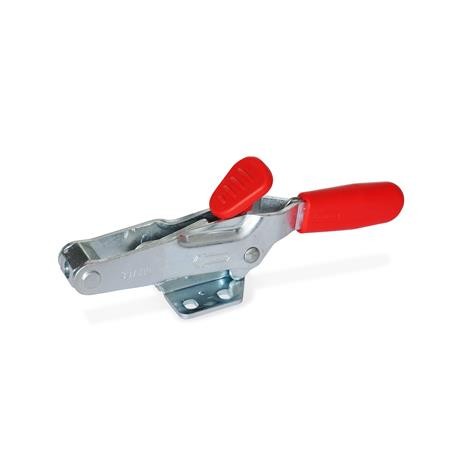

Type TFwithout draw axle, without catch

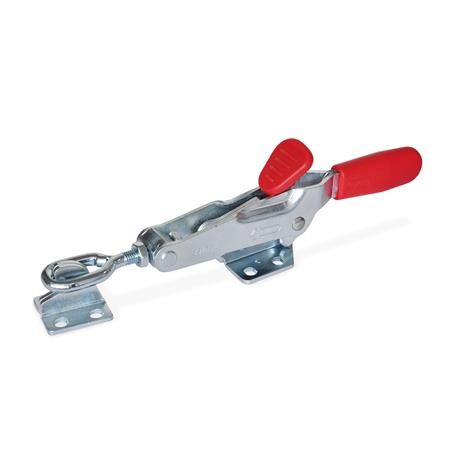

Type TG - with draw axle, with catch, with oval head latch bolt

Type TTwith draw axle, with catch, with T-head latch bolt

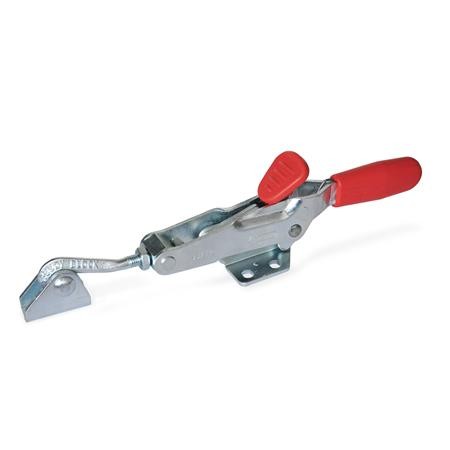

Type TU with draw axle, with catch, with J-hook latch bolt



CAD Viewer Technical Data

Product Description

GN850.2 Toggle Clamps with Safety Hook, Pulling Action

GN 850.2 toggle clamps have a safety function whereby, during closing, a spring loaded safety hook latch ensures a secure locking connection. It prevents the inadvertent unlocking of the clamp due to vibrations or an accidental loosening or opening of the clamp. To open and release the clamp, pull up on the finger grip to disengage the safety hook latch mechanism. They can be released with a one handed operation.

They are especially suited for rapid closing and fastening of lids, flaps and moulds.

During clamping, the pivoting movement of the clamping lever is transformed into an axial movement of the tension axis / tension hook and ensures form-fitting retention.

Toggle clamps of type T are equipped with a tension axis firmly attached to the clamping arm. Type TF can be used for specific applications by attaching individual latch bolts. Latch bolts for latch-type toggle clamps of Types TG, TT and TU can be adjusted along the adjustment dimension w2.


Steel - Case-hardened steel C10, zinc plated, blue passivated

Draw hook - Steel St 37, zinc plated, blue passivated

All moving parts lubricated with special grease

Hand grip - High quality, oil resistant, red plastic
