GN851.3 Steel Horizontal latch type toggle clamp compact design holding capacities vibration case hardened zinc plated blue passivated

Standard Machine Elements > Toggle Clamps, Power & Hook Clamps > Toggle Clamps
< Previous Product Next Product >

GN851.3 Horizontal Latch Type Toggle Clamp - Steel

images/300/GN851.3-Horizontal-latch-type-toggle-clamps-with-safety-hook-with-pulling-action-drawing_-_Copy_W.png

Type T6 - with U Bolt latch, with catch

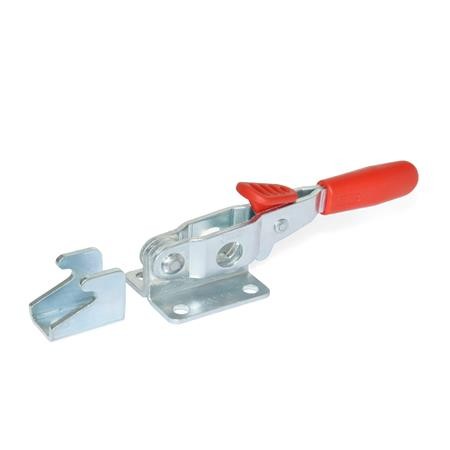

Type T - without U Bolt latch, with catch

Select Values to Buy:

Tech Spec:



GN851.3 Steel Horizontal Latch Type Toggle Clamp

These latch type toggle clamps GN851.3 are compact in design and have a high holding capacity.

When closing the clamp, a safety hook positively locks onto the body. This prevents the inadvertent or accidental release from the clamping position, for example due to vibration. When opening the safety hook, it is unlocked using a one handed operation.

The U bolt latch can be adjusted within its range.

In addition to the standard lengths for the U bolt latch shown above, more lengths may be achieved by using GN951.1 square U bolts.

A stainless steel variant is also available, GN851.3.

Specification

Parts in sheet metal - case-hardened Steel C10, zinc plated, blue passivated finish.

U bolt latch Steel St 37, zinc plated, blue passivated finish.

All movable sections lubricated with special grease

Handle, with plastic sleeve - red, oil resistant

RoHS compliant

Select / Deselect Visible Columns
PartCodeSizeTypeMaterialFH in N
Holding
Capacity
ab1b2b3b4b5d1d2h1h2l1l2m1m2m3m4m5rsw1w2Mass

GN851.3-160-T6160T6ST1600122628212014M44.3311899111951651035225110.08
GN851.3-160-T160TST1600~2628~2014~4.33118~~19516510~2~~0.1
GN851.3-320-T6320T6ST3200164044322822M66.54525166203210.519714.354335130.28
GN851.3-320-T320TST3200~4044~2822~6.54525~~3210.519714.3~3~~0.256
GN851.3-700-T6700T6ST7000246054383826M88.5563621725389.541.59.519703.549260.595
GN851.3-700-T700TST7000~6054~3826~8.55636~~389.541.59.519~3.5~~0.505
