GN852.3 Stainless Steel Latch Type Toggle Clamps with Safety Hook, Heavy Duty

Choose your Part

Please select desired options to reveal part number, price and availability

Options

Type T6 - With mounting holes, with U-bolt latch, with catch

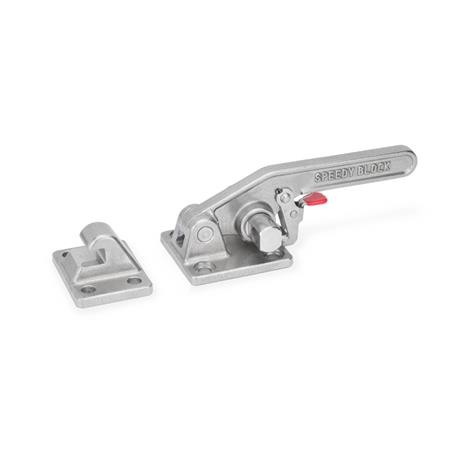

Type T - With mounting holes, without U-bolt latch, with catch

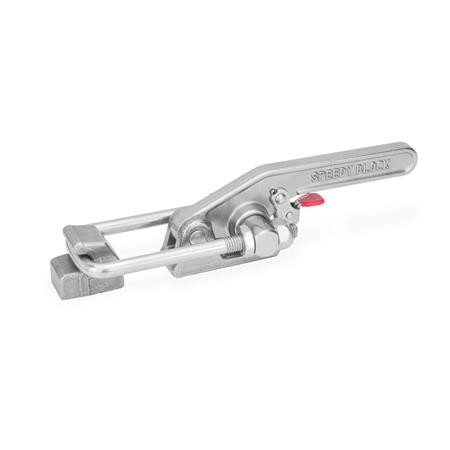

Type T6S - For welding, with U-bolt latch, with catch

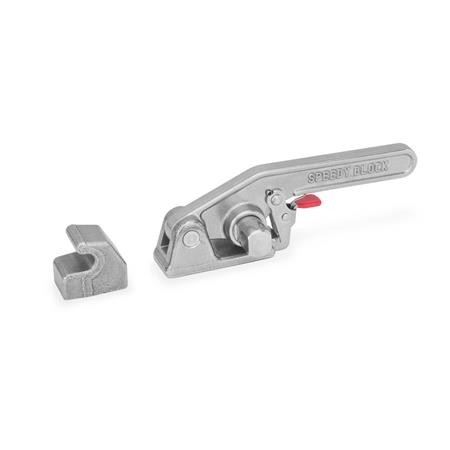

Type TS - For welding, without U-bolt latch, with catch

Product Description

GN852.3 Stainless Steel Horizontal Latch Type Toggle Clamps with Safety Hook, Heavy Duty

These heavy duty stainless steel latch type toggle clamps, GN 852.3, are compact in design and have a high holding capacity.

When closing the clamp, a safety hook positively locks onto the body. This prevents the inadvertent or accidental release from the clamping position, for example caused by vibration. When opening, the safety hook is unlocked using a one-hand operation.

The U-bolt latch can be adjusted within its range.

In addition to the standard lengths for the U-bolt latch shown, more lengths may be achieved by using GN951.1 square U-bolts.

Steel variant also available GN852.3

Specification

Body / catch / clamping lever / U-bolt latch - Stainless Steel AISI 304 NI, forged

Other parts - Stainless Steel AISI 303 NI

All moving parts lubricated with special grease.
