GN853 Latch clamps locking mechanism one hand operating steel GN 853

Standard Machine Elements > Toggle Clamps, Power & Hook Clamps > Toggle Clamps
< Previous Product Next Product >

GN853 Latch Clamp, Sheet Steel with Locking Mechanism

images/300/GN853-Latch-clamps-with-locking-mechanism-sketch_H.png

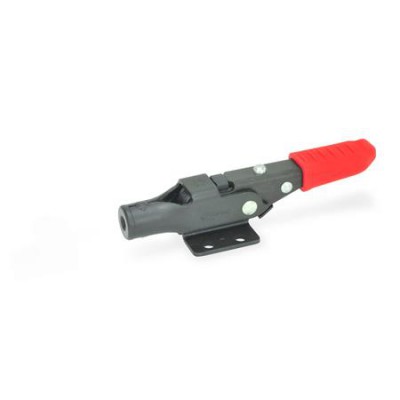

Type T5 - without latch bolt, without catch

Type TG - with oval head latch bolt, with catch

Type TT - with T-head latch bolt, with catch

Type TU - with J-hook latch bolt, with catch

Select Values to Buy:

Tech Spec:



GN 853 Latch Clamp, Sheet Steel with Locking Mechanism

This latch clamp features a locking mechanism which prevents the inadvertent or vibration induced opening of the clamp.

Another benefit is the option of operating the clamp with one hand.

Specification

Parts in sheet metal - Case hardened steel, C10, blackened.

Latch bolt - Steel St 32, blackened.

All moving parts lubricated with special grease

Solid moulded plastic handle sleeve - red, oil resistant.

RoHS compliant

Select / Deselect Visible Columns
PartCodeSizeTypeMaterialFH in N
Holding
Capacity
ab1b2b3b4b5b6b7d1d2/d3d4d5h1h2h3l1l2l3l4l5l6m1m2m3m4m5swMass

GN853-160-T5160T5ST1750132628231426356.8M64.55.26272020.5103555554283019161614.325.4280.08
GN853-160-TG160TGST1750132628231426356.8M64.55.26272020.5103555554283019161614.325.4280.13
GN853-160-TT160TTST1750132628231426356.8M64.55.26272020.5103555554283019161614.325.4280.11
GN853-160-TU160TUST1750132628231426356.8M64.55.26272020.5103555554283019161614.325.4280.12
GN853-320-T5320T5ST40001940443418353810M86.77838.5302815376.576.576.53444.532191922.325.43130.297
GN853-320-TG320TGST40001940443418353810M86.77838.5302815376.576.576.53444.532191922.325.43130.383
GN853-320-TT320TTST40001940443418353810M86.77838.5302815376.576.576.53444.532191922.325.43130.36
GN853-320-TU320TUST40001940443418353810M86.77838.5302815376.576.576.53444.532191922.325.43130.38
GN853-700-T5700T5ST75002860544126505011M108.59105340.53922295.5939242513841.53125.4313.5190.686
GN853-700-TG700TGST75002860544126505011M108.59105340.53922295.5939242513841.53125.4313.5190.88
GN853-700-TT700TTST75002860544126505011M108.59105340.53922295.5939242513841.53125.4313.5190.84
GN853-700-TU700TUST75002860544126505011M108.59105340.53922295.5939242513841.53125.4313.5190.84
