GN854 Latch Clamp, Forged Steel with Trigger Function



images/300/GN854-Latch-clamps-with-trigger-function-sketch_H.png

Type T2S - for welding.

Coding 1 - with bore for gear lever handle.

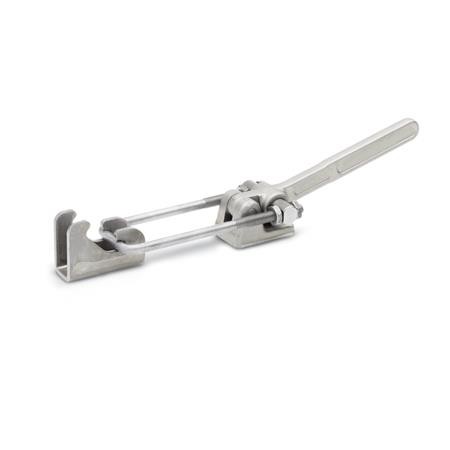

Coding 2 - with clamping arm.

Select Values to Buy:

Tech Spec:



GN 854 Latch Clamp, Forged Steel with Trigger Function

The outstanding feature of GN854 latch-type toggle clamps is their highly robust, sturdy and compact design, allowing their use under demanding conditions, e.g. exposure to high temperatures, dust, spray mist, etc.

The specially designed catch allows the forced loosening of the clamping by the clamping arm moving the U-bolt latch forward, for example, for separating mould halves.

Catches with bore (coding 1) are operated with a gear lever handle which is plugged into the latch and pulled off after operation. This saves space and has the added advantage that the gear lever handle is not exposed to adverse ambient conditions, for example, becoming too hot to operate. The gear lever handle is not included in the delivery.

The catch can also be attached using screws or bolts.

If required, clamps and catches are also available as separate parts; for replacement, the bearing pin is easily dismantled.

Specification

Clamping bearing / clamping arm - Steel, forged, weldable, blank.

U-bolt latch / bearing pins - Steel St 37, blank

Catch - Sheet metal steel, blank

RoHS compliant

Select / Deselect Visible Columns
PartCodeSizeIdentification No.TypeMaterialFH in N
Holding
Capacity
a1a2b1b2b3b4b5b6d1d2d3h1
Coding 1
h2l1
Coding 1
l2m1m2rtw1w2w3w4Mass

GN854-1500-1-T2S15001T2SST150002628654352707230M108.518555522018640161203010.52825401.2
GN854-1500-2-T2S15002T2SST150002628654352707230M108.518815533418640161203010.52825401.331
