GN896.1 - GN896.2 Proximity Switch, for Pneumatically Operated Clamps

CloseNextPrevious



CloseNextPrevious

GN896.1: Proximity Switch
Size: 1



CloseNextPrevious

GN896.2: Proximity Switch
Size: 2



Choose your Part

Please select desired options to reveal part number, price and availability

Size


Part Selected:
GN952.1-14-B10-20 £3.10 (£3.72 inc VAT) Copy Link to Selected Part
Value discounts applied at basket
-+

Stock Availability
Up to 10 for same day dispatch (order before 14:00)
Quantity:


Product Description

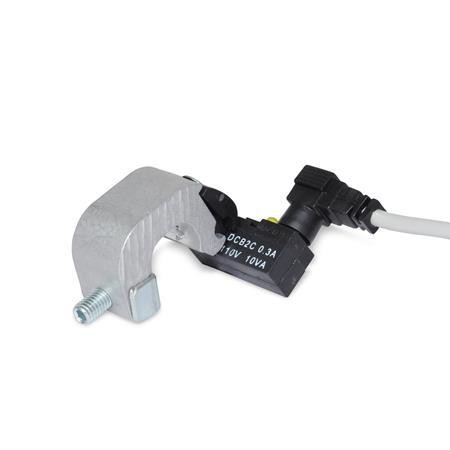

GN896.1 - GN896.2 Proximity Switch, for Pneumatically Operated Clamps

With these proximity switches, GN 896.1 - GN 896.2, pneumatically operated clamps can emit control signals. To do this, the clamps must be fitted with a special cylinder with magnetic piston (type M) which will cause the electric contacts in the REED switch to close. Examples of suitable clamps are GN860, GN862, GN862.1 and GN890. The proximity switches can be set anywhere along the full stroke length of the cylinder.

Specification

Voltage range: 3 110 V AC/DC

Switch load: 0,3 A

Switch capacity (inductive): 10 V A

Voltage drop LED: 3 V

Temp. range: -20°C to +85°C

Slew rate: 0,6 mS

Life expectancy: 107 operations

Protection class: IP 67

Electric cable PVC - 2 wires, 2,5 m. If used on DC brown wire to be connected to +, for the diode to work.
