GN146.9 Flanged Connector Clamp, Plastic
Choose your Part
Please select desired options to reveal part number, price and availability
d1 Bore
B18 B30
k Clamping length
29 45
Identification number
2
Colour
GR SW VDB
Stock Availability
No Stock for immediate dispatch
Options
Identification number 2 - with socket cap screw DIN912, stainless steel
Product Description
GN146.9 Flanged Connector Clamp, Plastic
The clamping bore axis of these flanged connector clamps GN 146.9 lies on a plane parallel to the surface of the flange. It holds typical construction tubes with full surface contact over the entire cross-section of the bore.
At the screw location z, the socket cap screw reduces the bore cross-section for clamping. Adapter bushings GN290 can be used to reduce the bore cross-sections to a smaller diameter.
For clamping without tools, the socket cap screw can be replaced by one of the adjustable hand levers GN911.9 listed in the table as accessories.
Specification
- Plastic, Technopolymer (Polyamide PA) - glass fibre reinforced, temerature resistant up to 100ºC, matte finish.

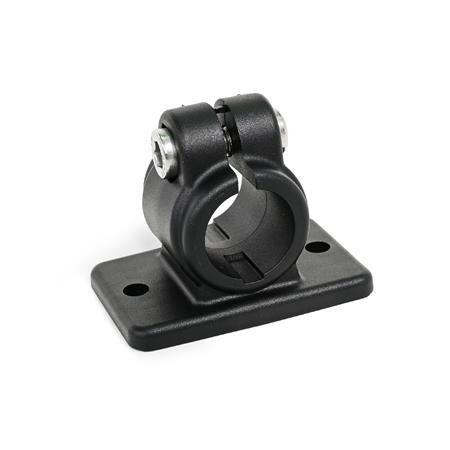

- Black, RAL 9005, SW

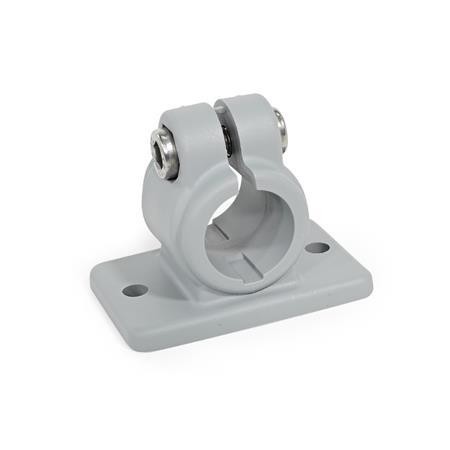

- Grey, RAL 7040, GR
- Blue, RAL 5005, VDB - FDA compliant plastic granulate, visually detactable
- Socket cap screw DIN912 stainless steel AISI 304
- Hex nut DIN985 stainless steel AISI 304, self locking with polymide ring
CAD Viewer
Technical Data
