Identification Number 2 - with 2 stainless steel clamping screws DIN 912
Product Description

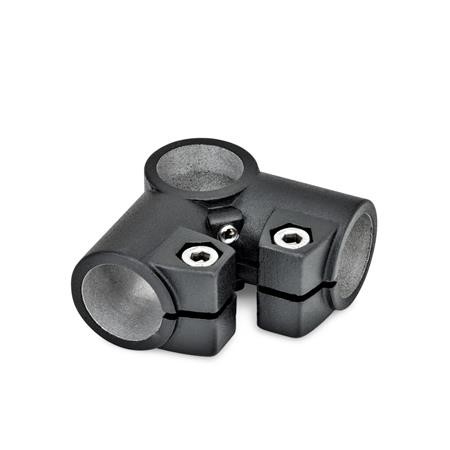

GN196 Aluminium Angle Connector Clamps
The clamping bores of these angle connector clamps GN 196 are specially designed for construction tubings GN990 or DIN2391, DIN2395 and DIN2462 respectively.
The standard clamping screws are socket cap screws DIN912. They can be replaced by clamping kits GN911
Specification
Aluminium AL - Plastic coated. Black, RAL 9005, textured finish, SW. Blank, BL, matt shot-blasted.
Hexagon screws DIN912 - Stainless Steel NI, AISI 304
Hexagon nuts DIN985 - Stainless Steel NI, AISI 304
Grub screws DIN913 - Stainless Steel NI, AISI 304
Accessories
Clamping kits GN911
On Request
d1 / d2 with different bores
