Please select desired options to reveal part number, price and availability
Options
Identification Number 2 - with 3 stainless steel socket cap screws DIN 912
Product Description

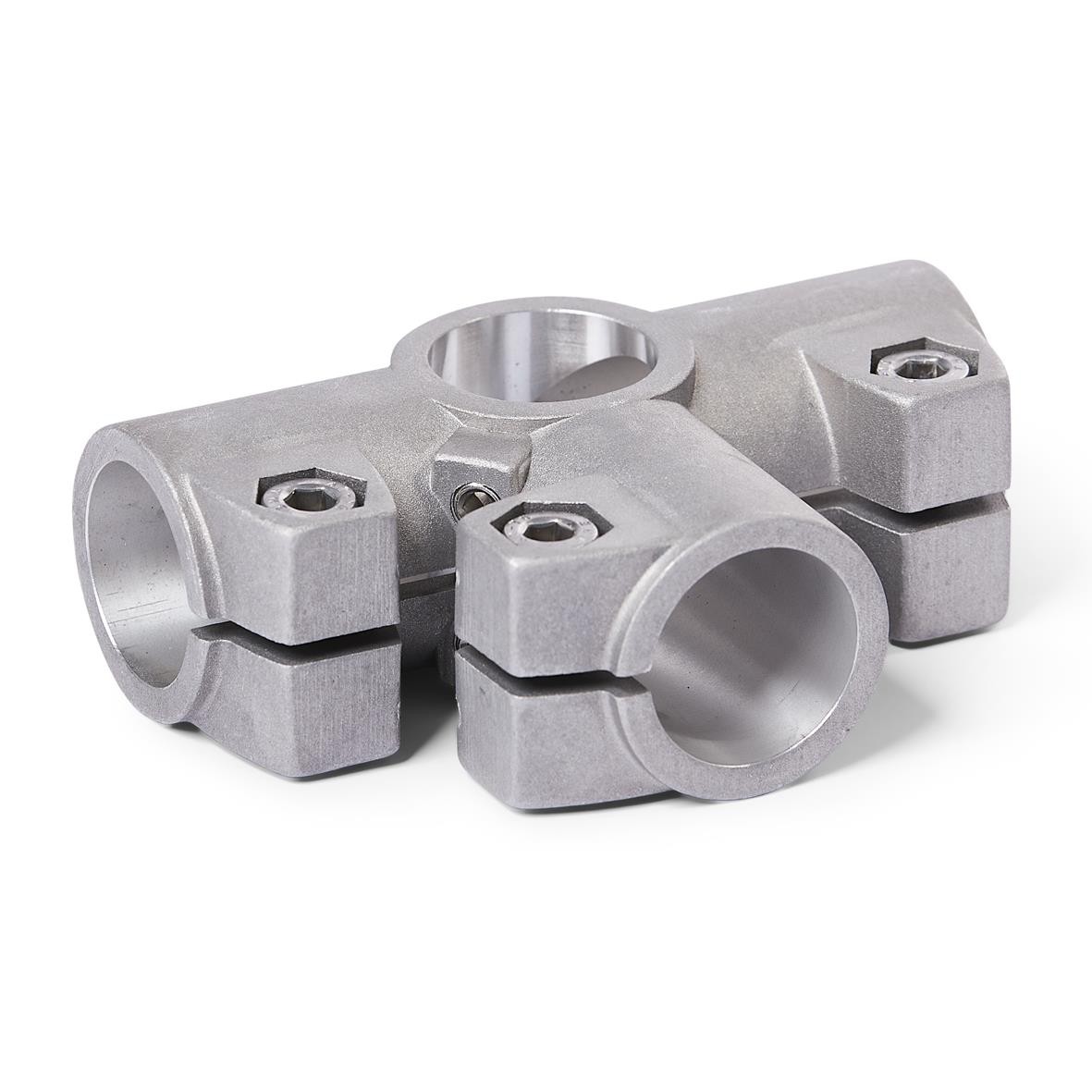

GN198 Aluminium Angle Connector Clamps
The clamping bores of these angle connector clamps GN 196 are specially designed for construction tubings GN990 or DIN2391, DIN2395 and DIN2462 respectively. They are hard wearing and robust and are available in black or shot blasted options.
At the screw locations z, the socket cap screws reduce the bore cross-section for clamping.
The standard clamping screws are socket cap screws DIN912. For clamping without tools, they can be replaced by clamping kits GN911 as shown.
Specification
Aluminium AL - Powder coated. Black, RAL 9005, textured finish, SW. Blasted, matt, BL.
Socket cap screws DIN912 - Stainless Steel, AISI 304
Hexagon nuts DIN985 - Stainless Steel, AISI 304. self locking via polyamide ring.
Grub screws DIN914 - Stainless Steel, AISI 304
Accessories
Adjustable hand levers GN911
CAD Viewer
Technical Data
