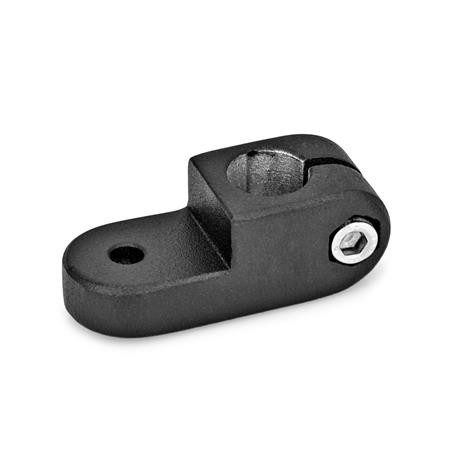

GN273 Swivel Clamp Connector, Plain, Aluminium

CloseNextPrevious
CAD Viewer Technical Data

Series Selector

Options

Identification number 2 - with one clamping screw DIN 912, stainless steel

CAD Viewer Technical Data

Product description

GN 273 Swivel Clamp Connectors, Aluminium

The clamping bore of these swivel clamp connectors is mechanically machined and designed for construction tubings GN990 or DIN 2391, DIN 2395 and DIN 2462 respectively.

These swivel clamp connectors can be assembled with swivel clamp connectors GN271, GN275 or GN277 to create swivel clamp connector joints.

The standard version of the clamping screw is a socket cap screw with hexagonal socket DIN 912. It can be replaced by a clamping kit GN911

Specification

Aluminium

Black, plastic coated, textured finish SW. Blank, matt finish, shot blasted BL

Clamping bore - mechanically machined

Socket cap screws DIN 912 - Stainless Steel AISI 304

Hexagon nuts DIN 985 Stainless Steel AISI 304
