GN274 Swivel Clamp Connector, Aluminium

CloseNextPrevious
CAD Viewer Technical Data

Series Selector

Options

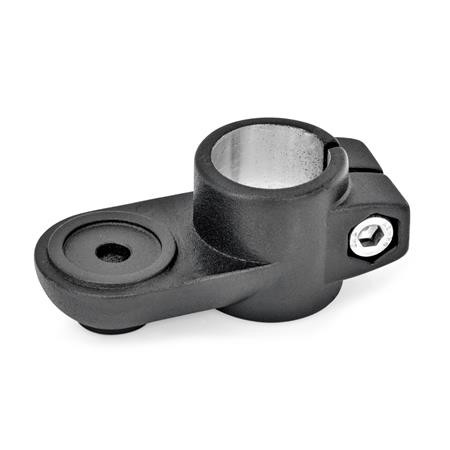

Type OZ - Without Centering Step

Type MZ - With Centering Step

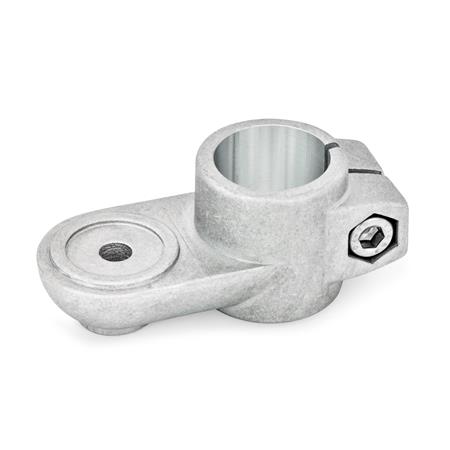

Type AV - Male Serration

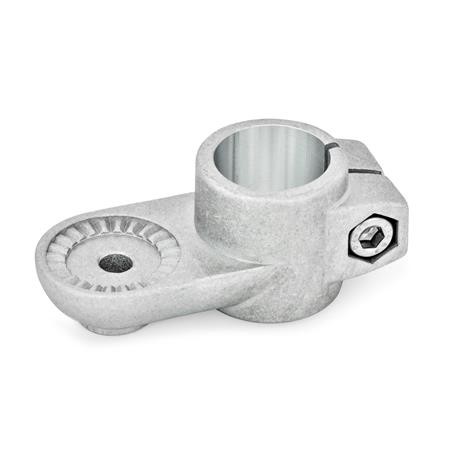

Type IV - Female Serration

Identification - with clamping screw DIN912, stainless steel

CAD Viewer Technical Data

Product description

GN274 Swivel Clamp Connectors, Aluminium

The clamping bore of the swivel clamp connectors GN274 is machined and designed for construction tubings GN990 or DIN2391, DIN2395 and DIN2462 respectively.

The hexagon nuts DIN985 are either zinc plated or in Stainless Steel to suit the screws.

The clamping nuts (Identification no. 1 - 2) of the connector clamps comprise a screw and a nut and, in the case of the hexagon screw and clamping levers, a spacer tube is added.

Swivel clamp connectors GN274 can be assembled with swivel clamp connectors GN272, GN276 or GN278 to create swivel clamp connector joints.

Special executions: different surface finish or colours

Specification

Aluminium, Black plastic coated textured finish SW

Blank, matt shot blasted BL

Clamping bore mechanically machined

Socket cap screws DIN912 - steel zinc plated /stainless steel AISI 304

Hexagon nuts DIN985 - steel zinc plated / stainless steel AISI 304

Adjustable clamping levers GN911 - zinc die casting

Inserts / distance bushings - Stainless Steel AISI 303
