GN297 Bevel Gear Wheel, for Linear Actuators, Transfer Units

CloseNextPrevious
CAD Viewer Technical Data

Series Selector

Options

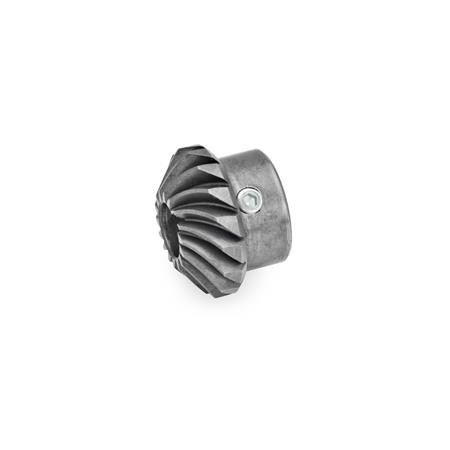

Type R - Bevel gear wheel, right-hand pitch

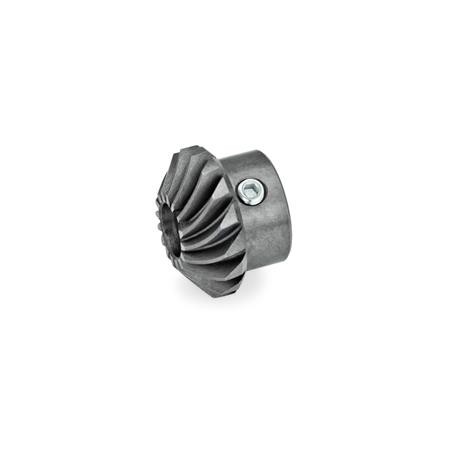

Type L - Bevel gear wheel, left-hand pitch

Type W - Set of bevel gears, 2 bevel gears, 1 x right-hand, 1 x left-hand pitch

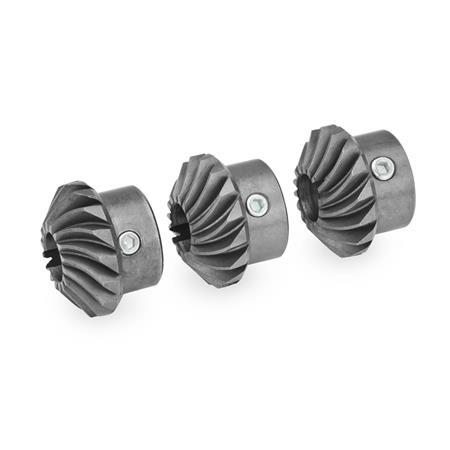

Type T - Set of bevel gears, 3 bevel gears, 1 x right-hand, 2 x left-hand pitch

CAD Viewer Technical Data

Product description

GN 297 Bevel Gear Wheel, for Linear Actuators, Transfer Units, with Spiral Bevel

Bevel gear wheels GN297 are used for angular / T-gears in connection with linear actuators / transfer units and housings GN298.

The spiral bevel facilitates both setting the desired clearance and locating the correct position of the bevel gears. Also, gears set up this way run with extremely low noise levels.

Two bevel-gear wheels are required for an angular gear, three for a T-gear. These are available as set in type W or type T.

Please note that only bevel gears with different pitches can be paired. The transmission ratio is always 1:1 because the bevel gears always have the same number of teeth.

Specification

Steel, hardened

Teeth - milled
