GN476.2 Rail T-Clamp Mounting, Aluminium, Splittable
Choose your Part
Please select desired options to reveal part number, price and availability
Options

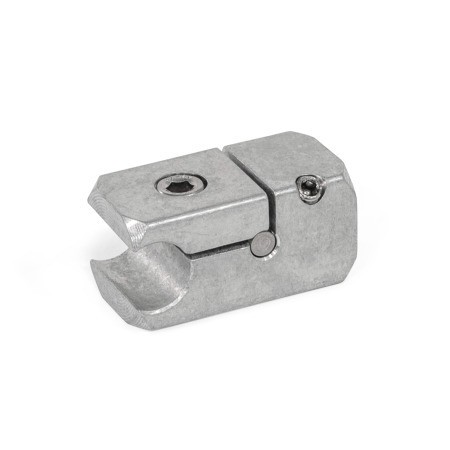

Type A - with bore

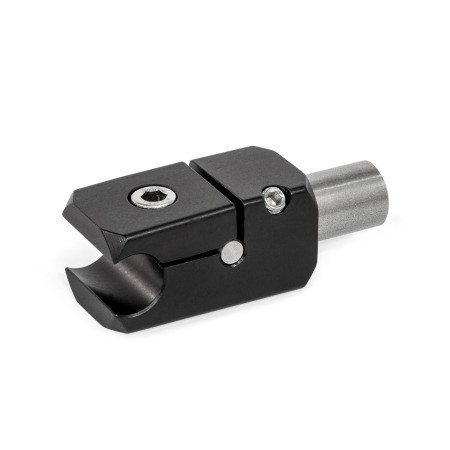

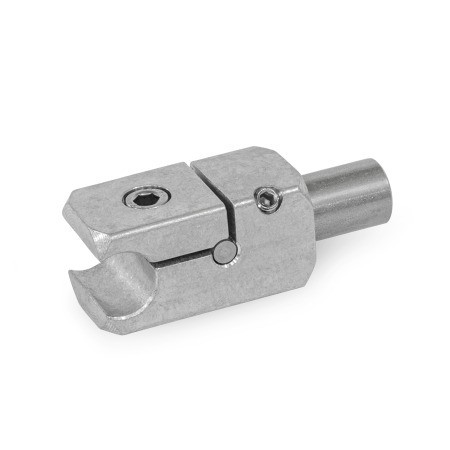

Type W - with stud
Product Description
GN476.2 Rail T-Clamp Mounting, Aluminium, Splittable
Rail T-mounting clamps GN 476.2 connect tubes and rods in a T shape. They are used for applications such as side guides, where the mounting clamps must not protrude to the side.
In addition, the split clamping point permits subsequent insertion of the mounting clamp into an existing structure and simplifies installation when axial insertion is not possible, such as due to curves.
By combining one mounting clamp of type W and one of type A, two tubes or rods can be connected together at any adjustable angle. The standard clamping screw is a socket cap screw with hexagonal socket ISO4762. It can be replaced by a clamping kit GN511 (for part code, see table of dimensions).
Specification
- Mounting clamp - aluminium
- Matte finish, tumbled, MT
- Anodized, black, ELS
- Bolt for type W - stainless steel AISI 303
- Socket cap screws ISO4762 - stainless steel
- Dowel pin ISO2338 - stainless steel
- Grub screw for type A, DIN913 - stainless steel
- Grub screw for type W, DIN915 - stainless steel
Accessory
Clamping kits GN511
Stainless steel retaining rods / retaining tubes GN480.1
