Product Description

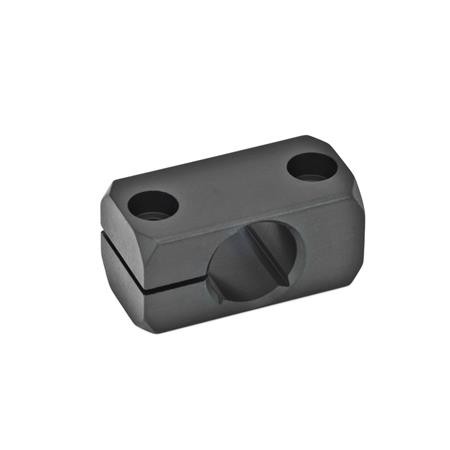

GN477 Clamp Mounting, Aluminium

These clamp mountings, GN 477, are unthreaded. Fixing or clamping is made via two threads on the attachment side.

The bore spacing m of the clamp mountings is matched with the foot clamp mountings GN473 and the flanged bolts GN480, as well as retaining magnets GN51.6.

Specification

Aluminium

Matt, ground MT.

Anodized black ELS.

Accessory

Clamping kits GN511
