GN484 Attachment Mounting Clamp for GN479 & GN479.1



Select Values to Buy:

Tech Spec:



GN 484 Attachment Mounting Clamp for GN479 & GN479.1

These attachment clamp mountings GN484, are perfect for mounting sensor holders GN479 and retaining plates GN479.1. They are fitted with a central thread and in sizes where the k dimension is 20 or higher, there is an additional bore template 4 x M4.

By using swivel clamp mountings GN482, and T swivel clamp mountings GN483 with the same k dimensions, attachment mounting clamps are easily combined into articulated swivel clamp mounting joints. Clamping kits GN511.1 with screw (type S), and adjustable hand lever (type K), are ideal for this purpose.

Specification

Aluminium.

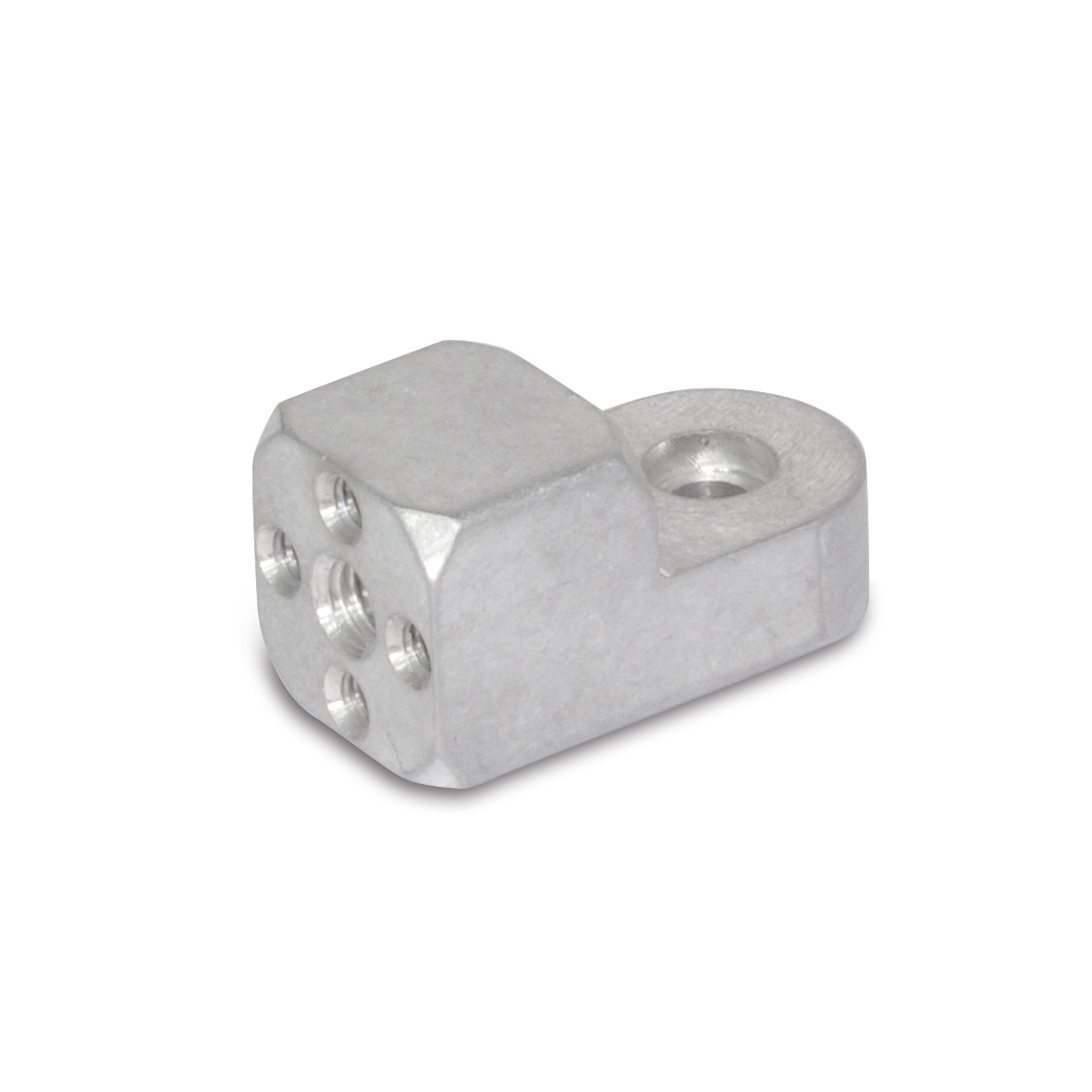

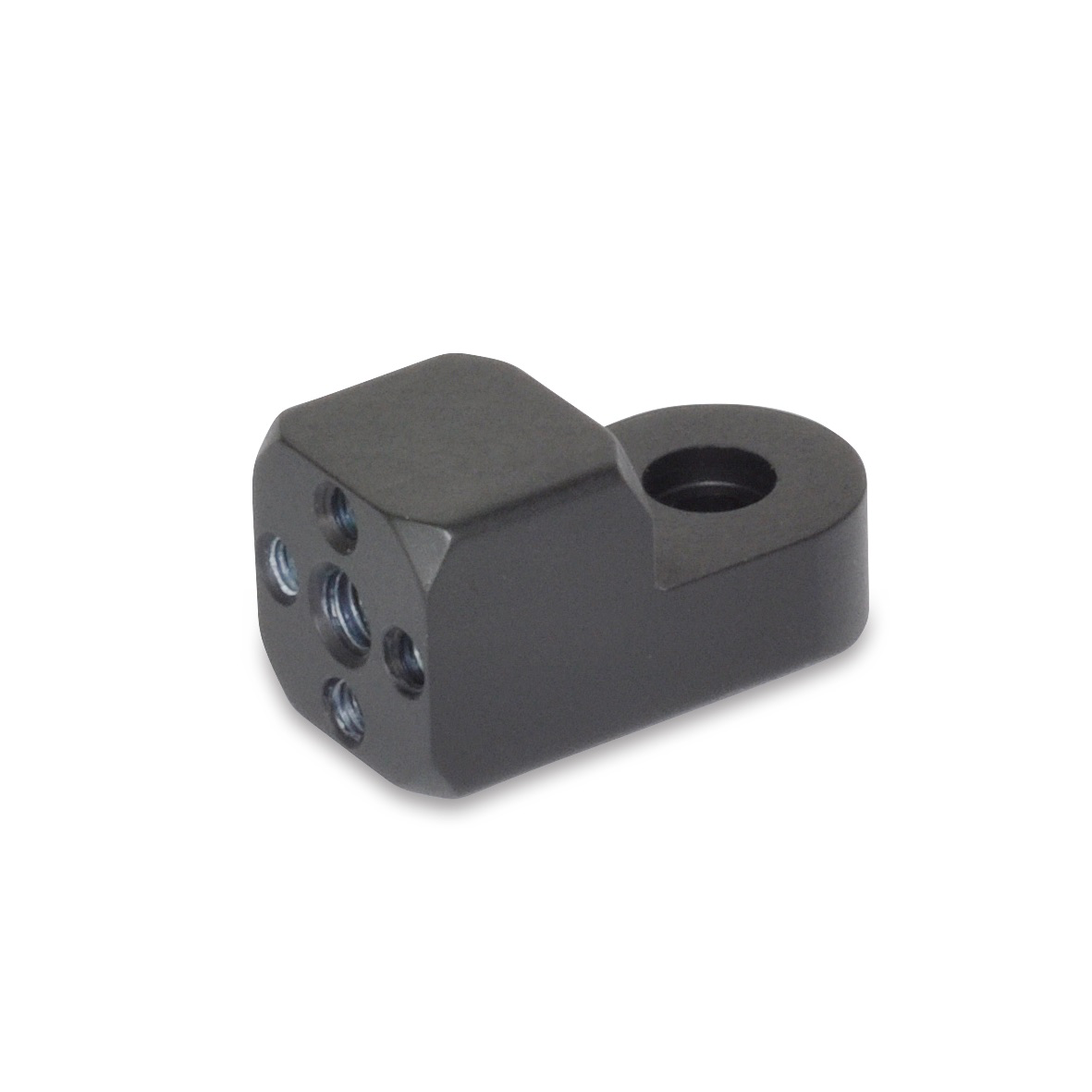

Matt, tumbled finish MT. Anodized black, ELS.

RoHS compliant

Select / Deselect Visible Columns
Close
Hided1Show
HidekShow
HideFinishShow
Hided2Show
Hided3
Joint Bore
Show
Hidel1Show
Hidel2Show
Hidel3Show
Hidel4
Square
V
Show
HidemShow
HideClamping Kit for d3
Type S
Show
HideClamping Kit for d3
Type K
Show
HideMaterialShow
PartCoded1kFinishd2d3
Joint Bore
l1l2l3l4
Square
V
mClamping Kit for d3
Type S
Clamping Kit for d3
Type K
MaterialMass

GN484-M5-16-ELSM516ELS74.53022138~GN511.1-M4-16-SGN511.1-M4-16-KAL0.012
GN484-M5-16-MTM516MT74.53022138~GN511.1-M4-16-SGN511.1-M4-16-KAL0.012
GN484-M6-16-ELSM616ELS74.53022138~GN511.1-M4-16-SGN511.1-M4-16-KAL0.012
GN484-M6-16-MTM616MT74.53022138~GN511.1-M4-16-SGN511.1-M4-16-KAL0.012
GN484-M8-16-ELSM816ELS74.53022138~GN511.1-M4-16-SGN511.1-M4-16-KAL0.011
GN484-M8-16-MTM816MT74.53022138~GN511.1-M4-16-SGN511.1-M4-16-KAL0.012
GN484-M6-20-ELSM620ELS8.55.53828171014GN511.1-M5-20-SGN511.1-M5-20-KAL0.024
GN484-M6-20-MTM620MT8.55.53828171014GN511.1-M5-20-SGN511.1-M5-20-KAL0.024
GN484-M8-20-ELSM820ELS8.55.53828171014GN511.1-M5-20-SGN511.1-M5-20-KAL0.023
GN484-M8-20-MTM820MT8.55.53828171014GN511.1-M5-20-SGN511.1-M5-20-KAL0.023
GN484-M8-25-ELSM825ELS106.54633.52012.517GN511.1-M6-25-SGN511.1-M6-25-KAL0.046
GN484-M8-25-MTM825MT106.54633.52012.517GN511.1-M6-25-SGN511.1-M6-25-KAL0.046
GN484-M10-25-ELSM1025ELS106.54633.52012.517GN511.1-M6-25-SGN511.1-M6-25-KAL0.045
GN484-M10-25-MTM1025MT106.54633.52012.517GN511.1-M6-25-SGN511.1-M6-25-KAL0.045
GN484-M8-30-ELSM830ELS106.55540241520GN511.1-M6-30-SGN511.1-M6-30-KAL0.084
GN484-M8-30-MTM830MT106.55540241520GN511.1-M6-30-SGN511.1-M6-30-KAL0.084
GN484-M10-30-ELSM1030ELS106.55540241520GN511.1-M6-30-SGN511.1-M6-30-KAL0.082
GN484-M10-30-MTM1030MT106.55540241520GN511.1-M6-30-SGN511.1-M6-30-KAL0.082
GN484-M12-30-ELSM1230ELS106.55540241520GN511.1-M6-30-SGN511.1-M6-30-KAL0.08
GN484-M12-30-MTM1230MT106.55540241520GN511.1-M6-30-SGN511.1-M6-30-KAL0.07
