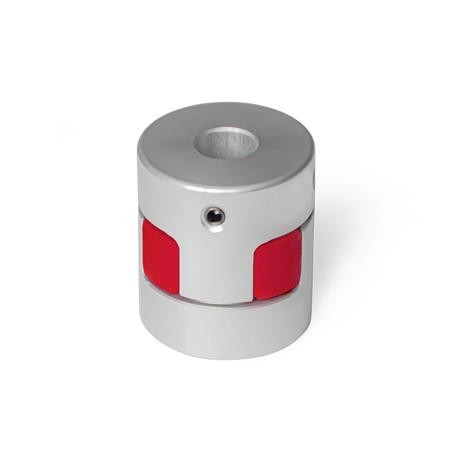

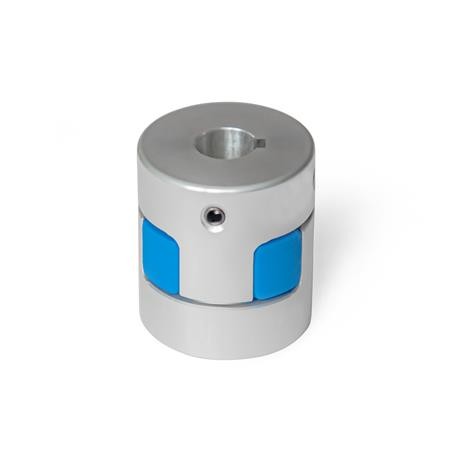

Blue BS - 80 Shore A

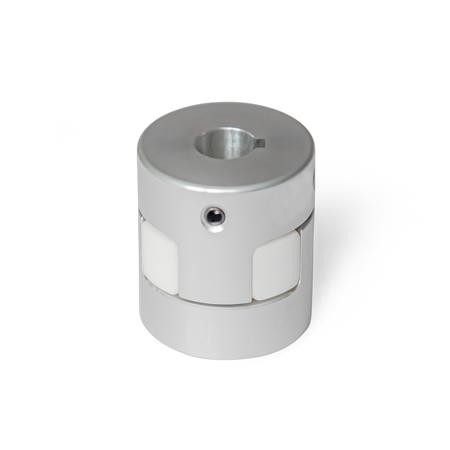

White WS98 Shore A
Red RS92 Shore A

CAD Viewer Technical Data

Product Description

GN2241 Elastomer Jaw Couplings, with Grub Screw

Elastomer jaw couplings GN 2240 can transmit very high torques while compensating for shaft misalignments and runout tolerances. They are preferred in applications where the focus lies on pure torque and power transmission.

The choice of three coupling spiders with different hardness values allows the properties of the coupling to be optimally matched to the specific requirements. The use of grub screws for clamping and the simple plug-in installation make jaw couplings very easy to assemble.

With the bore code K, the keyway is always integrated into both bores d2 and d3.

Specification

Hub - Aluminum AL, anodized, natural color

Coupling spider - Polyurethane (TPU), temperature resistant up to 60 °C
Hardness
80 Shore A, blue BS
98 Shore A, white WS
92 Shore A, red RS

Grub screws - Steel, blackened, for d2 / d3 ≤ 4, one grub screw, for d2 / d3 > 4, two grub screws

Temperature range: -20 °C up to +60 °C

Accessory

Coupling spiders GN2240.1
