GN3971 Bevel Gear Boxes, Aluminium Housing
Choose your Part
Please select desired options to reveal part number, price and availability
Options
Form A - Output on one side
Product Description

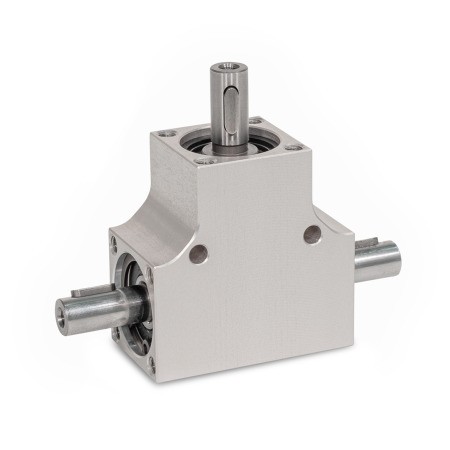

GN3971 Bevel Gear Boxes, Aluminium Housing
Bevel gear boxes GN 3971 can transmit high torque despite their very compact dimensions. They can readily be used for a multitude of applications, such as height adjustments or to change the direction of shaft rotation.
The numerous fastening holes allow for simple mounting in any orientation or position. The parallel keys can take any angular positions.
Specification
- Housing - Aluminium, sealed to prevent dust entry, anodized, natural colour AN
- Bevel gear wheels - steel, case hardened.
- Ball bearing - steel, sealed (sealing disks 2RS)
- Temperature range -20ºC to +60ºC
* Deviating from DIN6885
** Theoretically usable hub diameter
*** Usable thread depth: min. 2 x d5 / d6
**** Usable thread depth: min. 1.6 x d6
CAD Viewer
Technical Data
