Standard Machine Elements > Universal, Ball Joints & Fork Joints > Ball Joint Heads
< Previous Product Next Product >

GN648.8 Ball Joints





Type N - Bronze / Steel lubrication possible

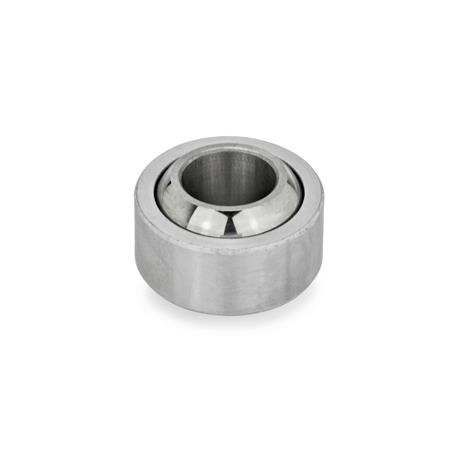

Type W - Steel PTFE / Steel, self lubricated

Select Values to Buy:

Tech Spec:



GN 648.8 Ball Joints

These ball joints are integrated in the ball joint heads GN648.1 and GN648.2 and are similar to DIN ISO 12240-4, series K.

They can be used for many different mounting applications and are available with a self lubricating option.

Specification

Pairings

Type N (lubrication possible)

Bearing socket - Brass, CuSn8

Internal ring - Steel 100 Cr6, hardened, ground, polished

Type W (self lubricated)

Bearing socket - Steel, zinc plated, with PTFE-insert

Internal ring - Steel, 100Cr6, hardened, ground, polished

Also available in stainless steel.

RoHS compliant



Select / Deselect Visible Columns
PartCoded1d2Typeb1b2wMaterialMass

GN648.8-5-13-N513N8613°ST0.009
GN648.8-5-13-W513W8613°ST0.009
GN648.8-6-16-N616N96.7513°ST0.012
GN648.8-6-16-W616W96.7513°ST0.012
GN648.8-8-19-N819N12914°ST0.024
GN648.8-8-19-W819W12914°ST0.017
GN648.8-10-22-N1022N1410.513°ST0.038
GN648.8-10-22-W1022W1410.513°ST0.037
GN648.8-12-26-N1226N161213°ST0.059
GN648.8-12-26-W1226W161213°ST0.057
GN648.8-14-28-N1428N1913.516°ST0.085
GN648.8-14-28-W1428W1913.516°ST0.07
GN648.8-16-32-N1632N211515°ST0.116
GN648.8-16-32-W1632W211515°ST0.112
GN648.8-18-35-N1835N2316.515°ST0.154
GN648.8-18-35-W1835W2316.515°ST0.1
GN648.8-20-40-N2040N251814°ST0.202
GN648.8-20-40-W2040W251814°ST0.14
GN648.8-22-42-N2242N282015°ST0.267
GN648.8-22-42-W2242W282015°ST0.254
GN648.8-25-47-N2547N312215°ST0.25
GN648.8-25-47-W2547W312215°ST0.23
GN648.8-30-55-N3055N372517°ST0.39
GN648.8-30-55-W3055W372517°ST0.362
