GN754 Fork Heads, External Thread, Steel

Choose your Part

Please select desired options to reveal part number, price and availability

Options

Type A - without pin

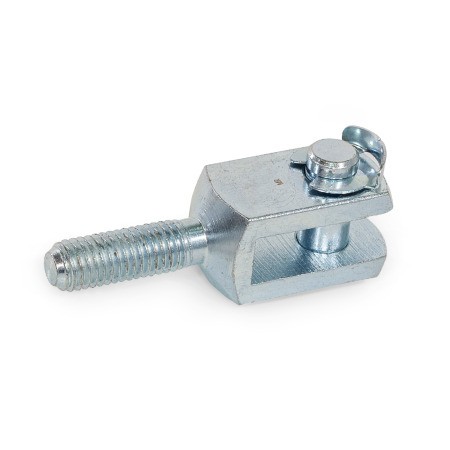

Type KL - pin with KL retaining clip

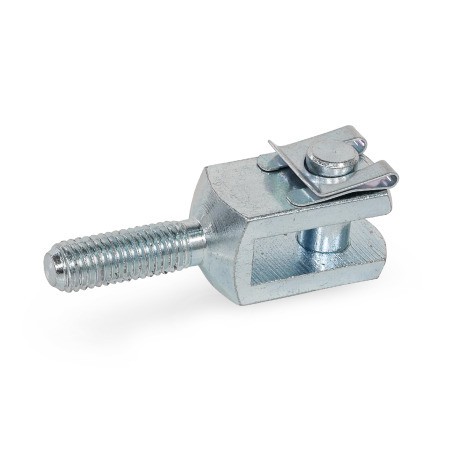

Type SL - pin with SL retaining clip

Product Description

GN754 Fork Heads, External Thread, Steel

Fork heads GN 754 transmit tensile and shearing forces, such as from rods, levers or cable pulls. The length of the external thread enables a significantly larger adjusting range than fork heads with internal thread.

The versions with pins can be combined with brackets or joint pieces GN752 to create fork joints, which can be quickly and easily assembled and disassembled without tools, especially with type KL.

Fork heads GN754 are dimensioned according to DIN 71752.

Specifications

• Fork head - steel, zinc plated, blue passivated. ST
• Pin for type KL / SL - steel, zinc plated, blue passivated.
• Retaining clip for type KL / SL - spring steel, hardened and tempered, zinc plated, blue passivated.

Accessory

Joint pieces GN752

On Request

Stainless steel option
