Please select desired options to reveal part number, price and availability
Options
Type KS - Ball With Threaded Stud
Type KI - Ball With Internal Thread

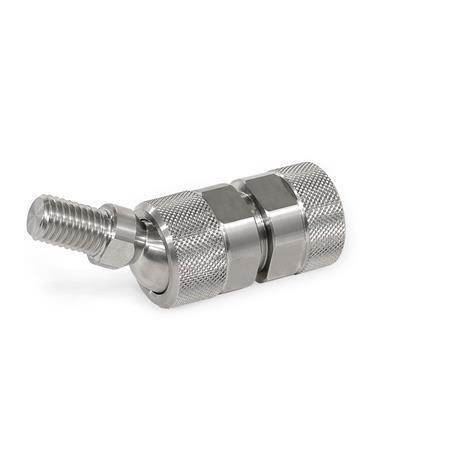

Identification No.1 - Mounting Socket With Internal Thread

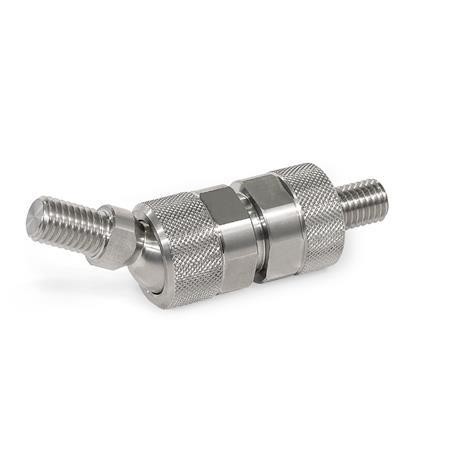

Identification No.2 - Mounting Socket With Threaded Stud
Product Description
GN782 Ball Joint, Stainless Steel
The clamping nut of the ball joints GN 782 can be set to give a required thrust on the Belleville spring washers in order to increase the resistance to the ball movement.
At the same time the Belleville spring washers act as safety washers for the screws.
Once the maximum thrust to the Belleville spring washers is reached the ball arm is firmly immobilised in position over the clamping nut and screw. The maximum tightening torque specified in the table may not be exceeded.
Specification
CAD Viewer
Technical Data
